Body-side frame for BMW 1 Series E88 118i (2013)

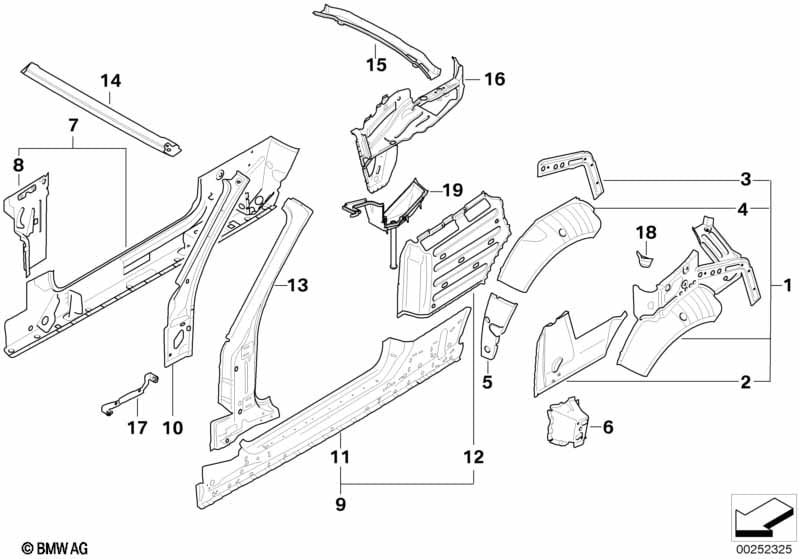

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral trim panel left | 1 | 41217194761 | $223.72 | Shop at ECS Tuning | |||||
| 01 | Lateral trim panel right | 1 | 41217194762 | $223.72 | Shop at ECS Tuning | |||||
| 02 | Main console mount, left | 1 | 41217194763 | $54.43 | Shop at ECS Tuning | |||||
| 02 | Main console mount, right | 1 | 41217194764 | $54.43 | Shop at ECS Tuning | |||||
| 03 | Tension band column C, left | 1 | 41217193235 | $9.63 | Shop at ECS Tuning | |||||
| 03 | Tension band column C, right | 1 | 41217193236 | $9.63 | Shop at ECS Tuning | |||||
| 04 | Wheelhouse rear, outer half left | 1 | 41217193233 | $43.54 | Shop at ECS Tuning | |||||
| 04 | Wheelhousing, rear, outer section, right | 1 | 41217193234 | $43.54 | Shop at ECS Tuning | |||||
| 05 | Cover panel, wheel house, left | 1 | 41217203299 | $26.49 | Shop at ECS Tuning | |||||
| 05 | Cover panel, wheel house, right | 1 | 41217203300 | $27.63 | Shop at ECS Tuning | |||||
| 06 | Crash reinforcement, left | 1 | 41007193237 | $11.19 | Shop at ECS Tuning | |||||
| 06 | Crash reinforcement, right | 1 | 41007193238 | $11.19 | Shop at ECS Tuning | |||||
| 07 | Left side member | 1 | 41117203301 | $362.22 | Shop at ECS Tuning | |||||
| 07 | Right side member | 1 | 41117203302 | $362.22 | Shop at ECS Tuning | |||||
| 08 | Left interior column A | 1 | 41217196125 | $81.19 | Shop at ECS Tuning | |||||
| 08 | Right interior column A | 1 | 41217196126 | $81.19 | Shop at ECS Tuning | |||||
| 09 | Left interior side frame | 1 | 41217193245 | $325.02 | Shop at ECS Tuning | |||||
| 09 | Right interior side frame | 1 | 41217193246 | $325.02 | Shop at ECS Tuning | |||||
| 10 | Inner left apron | 1 | 41217193247 | $138.78 | Shop at ECS Tuning | |||||
| 10 | Inner right apron | 1 | 41217193248 | $138.78 | Shop at ECS Tuning | |||||
| 11 | Left door sill cover | 1 | 41217193255 | $267.00 | Shop at ECS Tuning | |||||
| 11 | Right door sill cover | 1 | 41217193256 | $267.00 | Shop at ECS Tuning | |||||
| 12 | Reinforcement column B inside left | 1 | 41217193257 | $97.13 | Shop at ECS Tuning | |||||
| 12 | Reinforcement column B inside right | 1 | 41217193258 | $97.13 | Shop at ECS Tuning | |||||
| 13 | Left exterior column A | 1 | 41217193287 | $337.65 | Shop at ECS Tuning | |||||
| 13 | Column A exterior right | 1 | 41217193288 | $337.65 | Shop at ECS Tuning | |||||
| 14 | Upper apron | 1 | 41217193276 | $149.60 | Shop at ECS Tuning | |||||
| 15 | Rear window frame bottom part | 1 | 41627193259 | $96.71 | Shop at ECS Tuning | |||||
| 16 | Folding top compartment, right | 1 | 41007193240 | $127.40 | Shop at ECS Tuning | |||||
| 16 | Folding top compartment, left | 1 | 41107193239 | $127.40 | Shop at ECS Tuning | |||||
| 17 | Bracket, side panel column A left | 1 | 41217177361 | $7.91 | Shop at ECS Tuning | |||||
| 17 | Bracket, side panel, column A right | 1 | 41217177362 | $7.91 | Shop at ECS Tuning | |||||
| 18 | Molded part, side panel, left | 1 | 41217194463 | $5.35 | Shop at ECS Tuning | |||||
| 18 | Molded part, side panel, right | 1 | 41217194464 | $5.35 | Shop at ECS Tuning | |||||
| 19 | Water manifold left | 1 | 41217170843 | Shop at ECS Tuning | ||||||
| 19 | Water manifold right | 1 | 41217170844 | Shop at ECS Tuning |
