Side braces single parts, right for BMW MINI Clubman R55 LCI One

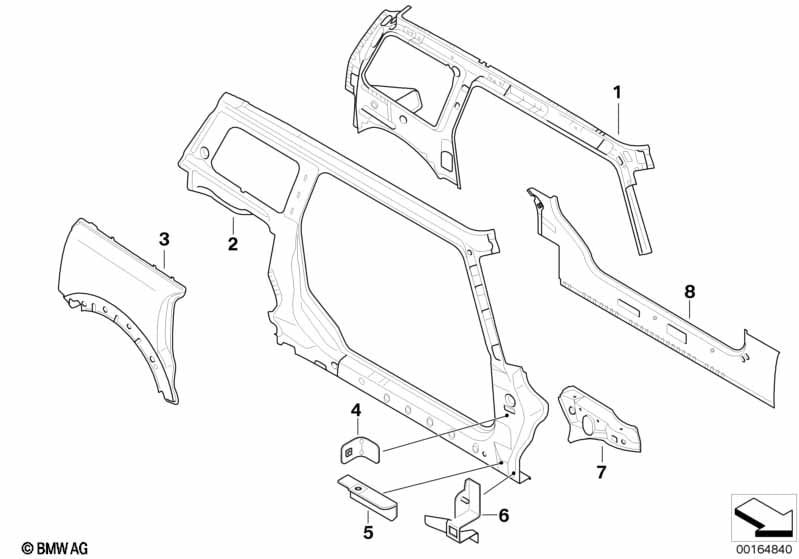

This Side braces single parts, right technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI One. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Right interior side frame | 1 | 41002757914 | $811.83 | +core | Shop at ECS Tuning | ||||
| 02 | Side frame, exterior, right | 1 | 41002756886 | $1125.81 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. only applies to Sidewall, rear right, replace AW number 41 35 115 |
||||||||||
| 03 | Right rear side panel | 1 | 41002757214 | $389.70 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 8 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 27 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 04 | Bracket, side panel, center | 2 | 41352754656 | $3.68 | Shop at ECS Tuning | |||||
| 05 | Bracket, side panel, bottom | 2 | 41352754655 | $3.68 | Shop at ECS Tuning | |||||
| 06 | Support, sill, left | 1 | 41217132511 | $7.91 | Shop at ECS Tuning | |||||
| 06 | Support, sill, right | 1 | 41217132512 | $7.91 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. only applies to Brace, wheelhousing, front right, replace AW number 41 11 024 41 11 517 41 14 031 |
||||||||||
| 07 | Wheel housing strut, front right | 1 | 41002755062 | $54.73 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N1 | 14 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| 08 | Interior right entrance | 1 | 41002757208 | $385.24 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
