Single components for trunk lid for BMW MINI Cabrio F57 JCW (2019)

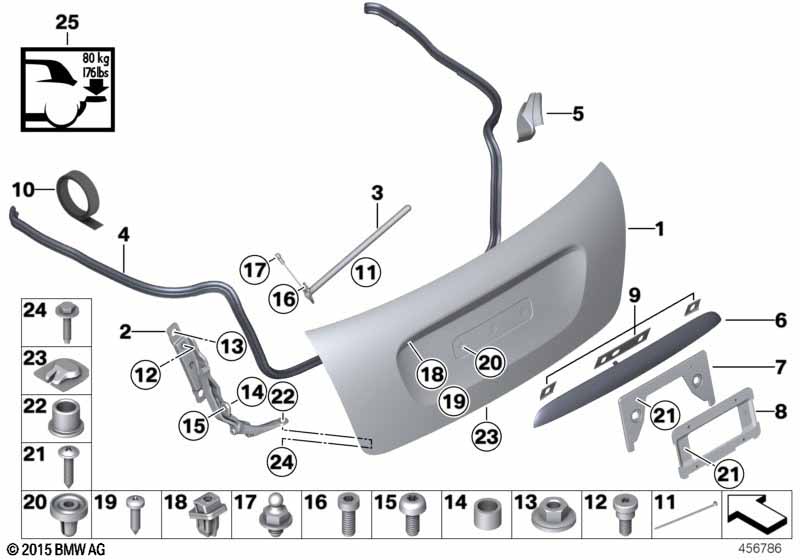

This Single components for trunk lid technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41007360368 | Shop at ECS Tuning | ||||||
| 02 | Left trunk lid hinge | 1 | 41007360369 | Shop at ECS Tuning | ||||||
| 02 | Right trunk lid hinge | 1 | 41007360370 | Shop at ECS Tuning | ||||||
| 03 | Retractor | 2 | 51247445200 | Shop at ECS Tuning | ||||||
| 04 | Trunk lid sealing | 1 | 51767360366 | Shop at ECS Tuning | ||||||
| 05 | Trim, drip rail, left | 1 | 51497390619 | Shop at ECS Tuning | ||||||
| 05 | Trim, drip rail, right | 1 | 51497390620 | Shop at ECS Tuning | ||||||
| For vehicles with Chrome Line exterieur and Reversing camera |
S346A=Yes S3AGA=No |
|||||||||
| 06 | Trunk lid grip with key button | CHROM | 1 | 03/2018 | 51137489753 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur and Reversing camera |
S346A=No S3AGA=No |
|||||||||
| 06 | Trunk lid grip with key button | SCHWARZ | 1 | 03/2018 | 51137489752 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur and Reversing camera |
S346A=No S3AGA=Yes |
|||||||||
| 06 | Trunk lid grip with key button | SCHWARZ | 1 | 03/2018 | 51137489756 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur and Reversing camera |
S346A=Yes S3AGA=Yes |
|||||||||
| 06 | Trunk lid grip with key button | CHROM | 1 | 03/2018 | 51137489757 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 07 | License plate holder | CHINA | 1 | 51137176632 | $17.58 | Shop at ECS Tuning | ||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 08 | License-plate carrier rear | US | 1 | 51139448724 | Shop at ECS Tuning | |||||
| 11 | Cable tie | 2 | 61138370478 | $0.35 | Shop at ECS Tuning | |||||
| 12 | Screw | 4 | 51242757957 | $0.59 | Shop at ECS Tuning | |||||
| 13 | Hex nut with plate | M8 | 4 | 07149302543 | Shop at ECS Tuning | |||||
| 14 | Spacer | 2 | 41007414359 | Shop at ECS Tuning | ||||||
| 15 | Fillister head screw | M8X35 | 2 | 07119908733 | Shop at ECS Tuning | |||||
| 16 | ISA screw | M6X20-U1-8.8 | 4 | 07129907026 | Shop at ECS Tuning | |||||
| 17 | Ball pin | M10 | 2 | 41007189292 | $3.02 | Shop at ECS Tuning | ||||
| 18 | Expanding nut | 8X8 MM | 2 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 19 | Screw | 5 X 16 | 6 | 07129907505 | Shop at ECS Tuning | |||||
| 20 | Expanding nut | 8X8 MM | 2 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 21 | Screw | 6X20 | 2 | 07129907489 | Shop at ECS Tuning | |||||
| 22 | Spacer | 2 | 41002758571 | Shop at ECS Tuning | ||||||
| 24 | Screw | M6X30 | 2 | 07119908754 | Shop at ECS Tuning | |||||
