Front hatch / locking system for BMW 7 Series F02 LCI 760Li (2015)

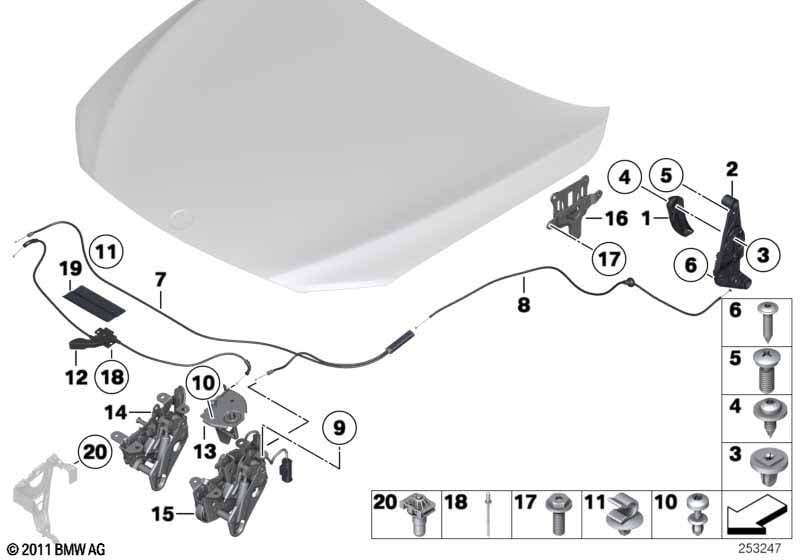

This Front hatch / locking system technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lever | 1 | 51239113984 | $1.78 | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 51239114002 | $6.86 | Shop at ECS Tuning | |||||
| 03 | Expanding nut | 7X7 MM | 3 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | ST4,8X16 | 3 | 07119901311 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Phillips screw f plastic material | TS 5X13 | 1 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Screw | TS5X16-ZNS3 | 3 | 07129905220 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Bowden cable, front | 1 | 51237183773 | $19.02 | Shop at ECS Tuning | |||||
| 09 | Oval-head screw with washer | ISA M6X21 | 4 | 07147263759 | Shop at ECS Tuning | |||||
| 10 | Expanding rivet | 2 | 51168197908 | $0.37 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | 3 | 34322333206 | $0.58 | Shop at ECS Tuning | |||||
| 12 | Latch control | 1 | 51237183765 | $21.37 | +core | Shop at ECS Tuning | ||||
| 13 | Lock upper section, left | 1 | 51237183763 | $44.97 | +core | Shop at ECS Tuning | ||||
| 13 | Lock upper section, right | 1 | 51237183764 | $44.97 | +core | Shop at ECS Tuning | ||||
| 14 | Lock, hood, passive, right | 1 | 51237183762 | $139.43 | +core | Shop at ECS Tuning | ||||
| 14 | Lock, hood, passive, left | 1 | 51237206453 | $139.43 | +core | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 15 | Lock, hood, active, left | 1 | 51237184441 | +core | Shop at ECS Tuning | |||||
| 15 | Lock, hood, active, right | 1 | 51237184442 | +core | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Active pedestrian protection |
L807A=No S8TFA=Yes |
|||||||||
| 15 | Lock, hood, active, left | 1 | 09/2009 | 51237184441 | +core | Shop at ECS Tuning | ||||
| 15 | Lock, hood, active, right | 1 | 09/2009 | 51237184442 | +core | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 16 | Left gate | 1 | 51237184435 | Shop at ECS Tuning | ||||||
| 16 | Right gate | 1 | 51237184436 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Active pedestrian protection |
L807A=No S8TFA=Yes |
|||||||||
| 16 | Left gate | 1 | 09/2009 | 51237184435 | Shop at ECS Tuning | |||||
| 16 | Right gate | 1 | 09/2009 | 51237184436 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 17 | Hex bolt with washer | M8X24 | 1 | 41617065160 | $0.97 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Active pedestrian protection |
L807A=No S8TFA=Yes |
|||||||||
| 17 | Hex bolt with washer | M8X24 | 4 | 09/2009 | 41617065160 | $0.97 | Shop at ECS Tuning | |||
| 18 | Blind rivet, flat headed | 6,5X14,3 | 2 | 41007054384 | $1.17 | Shop at ECS Tuning | ||||
| 19 | Heat protection | 165X75MM | 1 | 51237221223 | $14.24 | ENDED | Shop at ECS Tuning | |||
| 20 | Adjustment element | 2 | 51647200439 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
