Trunk lid/closing system for BMW MINI Cabrio F57 JCW (2021)

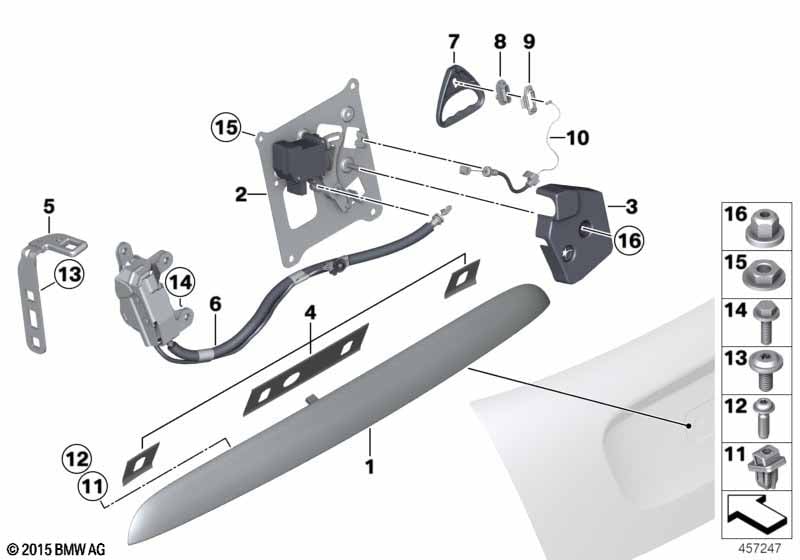

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Drive unit with servo actuator | 1 | 02/2009 | 51242758541 | $43.54 | Shop at ECS Tuning | ||||
| 03 | Cover, trunk lid lock | 1 | 51247159295 | $1.97 | Shop at ECS Tuning | |||||
| 05 | Catch bracket left | 1 | 51247381519 | Shop at ECS Tuning | ||||||
| 05 | Catch bracket right | 1 | 51247381520 | Shop at ECS Tuning | ||||||
| 06 | Trunk lid lock, left | 1 | 51247195099 | $50.10 | Shop at ECS Tuning | |||||
| 06 | Trunk lid lock, right | 1 | 51247195100 | $50.10 | Shop at ECS Tuning | |||||
| 07 | Handle f emergency unlocking | 1 | 51247056414 | $7.25 | Shop at ECS Tuning | |||||
| 08 | Washer | 1 | 51247057739 | $1.26 | Shop at ECS Tuning | |||||
| 09 | Clip | 1 | 51247056413 | $1.69 | Shop at ECS Tuning | |||||
| 10 | Bowden cable, emergency unlocking | 1 | 51247120472 | $17.52 | Shop at ECS Tuning | |||||
| 11 | Expanding nut | 8X8 MM | 2 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Screw | 5 X 16 | 6 | 07129907505 | Shop at ECS Tuning | |||||
| 13 | Combi oval-head machine screw | ISA M8X20 | 4 | 07147234925 | Shop at ECS Tuning | |||||
| 14 | Fillister head screw | M6X16 8.8 | 6 | 51119907273 | Shop at ECS Tuning | |||||
| 15 | Hex nut | M6-10-ZNS3 | 4 | 51249907504 | Shop at ECS Tuning | |||||
| 16 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 JCW Trunk lid/closing system?
- This technical diagram illustrates the Trunk lid/closing system within the Bodywork group for the MINI Cabrio F57 JCW produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Drive unit with servo actuator (Part #51242758541).
- Which models use the hardware listed in this Trunk lid/closing system?
- The hardware and components featured in the Trunk lid/closing system are specific to the MINI Cabrio F57 JCW produced during 2021. These technical specifications ensure that parts like the Drive unit with servo actuator (51242758541) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk lid/closing system assembly?
- Each item in the Trunk lid/closing system corresponds to the numbered list below the illustration. For the MINI Cabrio F57 JCW, you can identify the Drive unit with servo actuator by locating its position on the schematic, which then links to the official BMW part number 51242758541 for the Bodywork section.
