Front door control/door lock for BMW 3 Series E93 LCI 320i (2013)

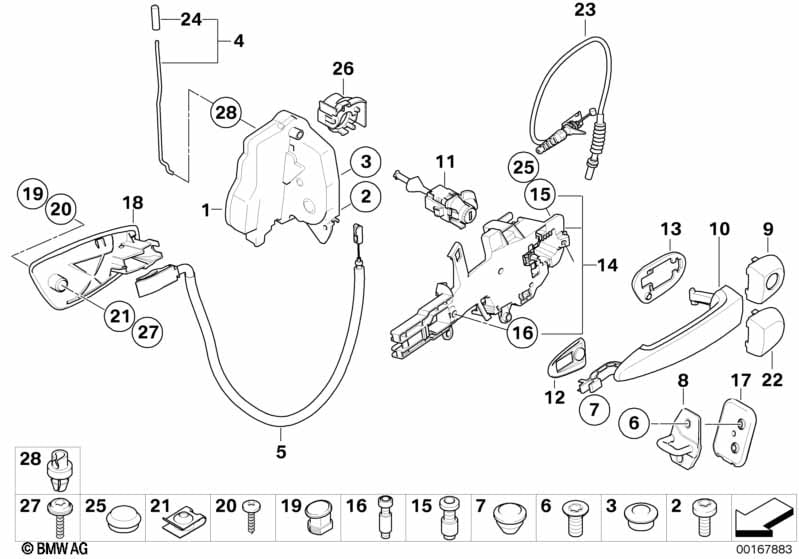

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.

Front door control/door lock
No. Description Supp. Qty  From   Up To  Part Number Price Notes
only applies to
Passenger's side
01 System latch, right 1 51217202146 $171.13 Shop at ECS Tuning
only applies to
Driver's side
01 System latch, left 1 51217202143 $171.13 Shop at ECS Tuning
02 Torx bolt M6X13 ZNNID SW 6 07147186859 $0.53 Shop at ECS Tuning
04 Operating rod, door front left 1 51217119599 $5.42 Shop at ECS Tuning
04 Operating rod, door front right 1 51217119600 $5.42 Shop at ECS Tuning
05 Bowden cable, door opener 2 51217119615 $15.68 Shop at ECS Tuning
06 Torx-countersunk head screw ISA M8X28 4 51217130110 $0.52 Shop at ECS Tuning
07 Blind plug D=6,5MM 2 51718407016 $0.18 Shop at ECS Tuning
08 Catch bracket 2 02/2009 51217312545 Shop at ECS Tuning
only applies to
Driver's side
09 cover, lock cylinder primed, left 1 51217162437 $27.07 Shop at ECS Tuning
only applies to
Driver's side
When ordering indicate color code
09 cover, lock cylinder painted, left CODE - UNI/MET. 1 51210399167 ENDED Shop at ECS Tuning
For vehicles with
Light package
only applies to
Driver's side
S563A=Yes
09 cover, lock cylinder primed, left 1 51217162439 $27.41 Shop at ECS Tuning
For vehicles with
Light package
only applies to
Driver's side
When ordering indicate color code
S563A=Yes
09 cover, lock cylinder painted, left CODE - UNI/MET. 1 51210399171 $74.49 ENDED Shop at ECS Tuning
For vehicles with
Comfort access
only applies to
Driver's side
S322A=Yes
09 cover, lock cylinder primed, left 1 51217162437 $27.07 Shop at ECS Tuning
For vehicles with
Comfort access
only applies to
Driver's side
When ordering indicate color code
S322A=Yes
09 cover, lock cylinder painted, left CODE - UNI/MET. 1 51210399167 ENDED, NoS Shop at ECS Tuning
For vehicles with
Comfort access
and
Light package
only applies to
Driver's side
S322A=Yes

S563A=Yes
09 cover, lock cylinder primed, left 1 51217162439 $27.41 Shop at ECS Tuning
For vehicles with
Comfort access
and
Light package
only applies to
Driver's side
When ordering indicate color code
S322A=Yes

S563A=Yes
09 cover, lock cylinder painted, left CODE - UNI/MET. 1 51210399171 $74.49 ENDED, NoS Shop at ECS Tuning
For vehicles with
Comfort access
S322A=No
10 Handle bracket, left prime-coated 1 01/2008 51217207561 $22.10 Shop at ECS Tuning
10 Handle bracket, right prime-coated 1 01/2008 51217207562 $22.10 Shop at ECS Tuning
For vehicles with
Comfort access
only applies to
Passenger's side
S322A=Yes
10 Handle primed right CA 1 01/2008 51215A8E2B4 Shop at ECS Tuning
For vehicles with
Comfort access
only applies to
Driver's side
S322A=Yes
10 Handle primed left CA 1 01/2008 51215A8E2B5 Shop at ECS Tuning
For vehicles with
Comfort access
only applies to
Passenger's side
When ordering indicate color code
S322A=Yes
10 grab handle, paint finish, right CODE - UNI/MET. 1 01/2008 51217207570 $222.74 ENDED Shop at ECS Tuning
For vehicles with
Comfort access
only applies to
Driver's side
When ordering indicate color code
S322A=Yes
10 grab handle, paint finish, left CODE - UNI/MET. 1 01/2008 51217207571 $222.74 ENDED Shop at ECS Tuning
only applies to
Driver's side
11 Catch with key left 1 51217187853 $110.60 Shop at ECS Tuning
11 Lock with code, left 2 51217199853 $106.53 Shop at ECS Tuning
12 Handle bracket base, left 1 51217060293 $1.35 Shop at ECS Tuning
12 Handle bracket base, right 1 51217060294 $1.35 Shop at ECS Tuning
13 Lock cylinder base left 1 51217060667 $1.60 Shop at ECS Tuning
13 Lock cylinder base right 1 51217060668 $1.60 Shop at ECS Tuning
14 Carrier, outside door handle, left 1 51227199835 $47.72 Shop at ECS Tuning
only applies to
Passenger's side
14 Carrier, outside door handle, right 1 51227199836 $47.72 Shop at ECS Tuning
15 Inner hex bolt M5 2 51217133972 $1.14 Shop at ECS Tuning
16 Torx Bolt for aluminium ISA 2 07147209542 $0.56 Shop at ECS Tuning
17 Lock plate M8 2 41218215401 $2.14 Shop at ECS Tuning
18 Door handle, inside left SCHWARZ 1 51216975495 $29.40 Shop at ECS Tuning
18 Door handle inner right SCHWARZ 1 51216975496 $29.40 Shop at ECS Tuning
18 Door handle, inside left GRAU 1 51216975497 $29.40 +core Shop at ECS Tuning
18 Door handle inner right GRAU 1 51216975498 $29.40 +core Shop at ECS Tuning
18 Door handle, inside left CREAMBEIGE 1 51216975499 $29.40 Shop at ECS Tuning
18 Door handle inner right CREAMBEIGE 1 51216975500 $29.40 Shop at ECS Tuning
18 Door handle, inside left PERLGLANZCHROM 1 51218043243 Shop at ECS Tuning
18 Door handle inner right PERLGLANZCHROM 1 51218043244 Shop at ECS Tuning
19 Plug, door opener, inside left SCHWARZ 1 51417118895 $0.65 Shop at ECS Tuning
19 Plug, door opener, inside right SCHWARZ 1 51417118896 Shop at ECS Tuning
19 Plug, door opener, inside left ALASKAGRAU 1 51417147153 $0.69 Shop at ECS Tuning
19 Plug, door opener, inside right ALASKAGRAU 1 51417147154 Shop at ECS Tuning
19 Plug, door opener, inside left HAVANNA 1 51417147155 Shop at ECS Tuning
19 Plug, door opener, inside right HAVANNA 1 51417147156 Shop at ECS Tuning
19 Plug, door opener, inside left BEIGE 1 51417157435 Shop at ECS Tuning
19 Plug, door opener, inside right BEIGE 1 51417157436 Shop at ECS Tuning
20 Sheet metal screw ST4,8X16-U1-C- 2 07119904182 $0.25 Shop at ECS Tuning
21 Body nut ST 4,8-11-ZNS 2 07129901551 $0.25 Shop at ECS Tuning
21 Fillister head screw with collar M4X14 2 46637659479 $1.20 Shop at ECS Tuning
only applies to
Passenger's side
22 Covering door, primed right 1 51217162432 $22.50 Shop at ECS Tuning
only applies to
Passenger's side
When ordering indicate color code
22 Cover right painted CODE - UNI/MET. 1 51210399178 ENDED Shop at ECS Tuning
For vehicles with
Light package
only applies to
Passenger's side
S563A=Yes
22 Covering door, primed right 1 51217162434 $22.50 Shop at ECS Tuning
For vehicles with
Comfort access
only applies to
Passenger's side
S322A=Yes
22 Covering door, primed right 1 51217162432 $22.50 Shop at ECS Tuning
For vehicles with
Comfort access
only applies to
Passenger's side
When ordering indicate color code
S322A=Yes
22 Cover right painted CODE - UNI/MET. 1 51210399178 ENDED, NoS Shop at ECS Tuning
For vehicles with
Comfort access
and
Light package
only applies to
Passenger's side
S322A=Yes

S563A=Yes
22 Covering door, primed right 1 51217162434 $22.50 Shop at ECS Tuning
For vehicles with
Comfort access
and
Light package
only applies to
Passenger's side
When ordering indicate color code
S322A=Yes

S563A=Yes
22 Cover right painted CODE - UNI/MET. 2 51210399182 ENDED, NoS Shop at ECS Tuning
23 Bowd.cable,outside door handle front 2 51217119603 $13.30 Shop at ECS Tuning
24 Lock button SCHWARZ 2 51211805643 $1.26 Shop at ECS Tuning
28 Circlip 2 51221817032 $0.31 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • NoS = No Stock (Part centrally not stocked)
  • +core = plus core charge (possibility of a return of the old part)
