Front door control/door lock for BMW 3 Series E90 330i (2007)
This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Important: on E90/E91 only: Observe PuMA Measure 9543813 |
||||||||||
| 01 | System latch, right | 1 | 03/2009 | 51217202144 | $171.13 | Shop at ECS Tuning | ||||
| only applies to Passenger's side Observe PuMA Measure 9543813 |
||||||||||
| 01 | System latch, left | 1 | 03/2009 | 51217202145 | Shop at ECS Tuning | |||||
| 02 | Torx bolt | M6X13 ZNNID SW | 6 | 07147186859 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Blind plug | D=20MM | 2 | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 03 | Blind plug | D=12MM | 2 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Operating rod, door front left | 1 | 51217059905 | $5.42 | Shop at ECS Tuning | |||||
| 04 | Operating rod, door front right | 1 | 51217059906 | $5.42 | Shop at ECS Tuning | |||||
| 05 | Bowden cable, inside door opener front | 2 | 51217059969 | $15.68 | Shop at ECS Tuning | |||||
| 06 | Torx-countersunk head screw | ISA M8X28 | 4 | 51217130110 | $0.52 | Shop at ECS Tuning | ||||
| 08 | Catch bracket | CHROM | 2 | 02/2009 | 51217148705 | $19.23 | Shop at ECS Tuning | |||
| only applies to Driver's side |
||||||||||
| 09 | cover, lock cylinder primed, right | 1 | 51217162438 | $27.07 | Shop at ECS Tuning | |||||
| only applies to Driver's side When ordering indicate color code |
||||||||||
| 09 | cover, lock cylinder painted, right | CODE - UNI/MET. | 1 | 51210399168 | $74.49 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Light package only applies to Driver's side |
S563A=Yes |
|||||||||
| 09 | cover, lock cylinder primed, right | 1 | 51217162440 | $27.41 | Shop at ECS Tuning | |||||
| For vehicles with Light package only applies to Driver's side When ordering indicate color code |
S563A=Yes |
|||||||||
| 09 | cover, lock cylinder painted, right | CODE - UNI/MET. | 1 | 51210399172 | $94.17 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 10 | grab handle, paint finish, right | CODE - UNI/MET. | 1 | 01/2008 | 51210445182 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | grab handle, paint finish, left | CODE - UNI/MET. | 1 | 01/2008 | 51210445183 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Comfort access only applies to Passenger's side |
S322A=Yes |
|||||||||
| 10 | Handle primed left | CA | 1 | 01/2008 | 51215A8E2A5 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Comfort access only applies to Driver's side |
S322A=Yes |
|||||||||
| 10 | Handle primed right | CA | 1 | 01/2008 | 51215A8E2A8 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 10 | Handle bracket, left prime-coated | 1 | 01/2008 | 51217207539 | $22.60 | Shop at ECS Tuning | ||||
| 10 | Handle bracket, right prime-coated | 1 | 01/2008 | 51217207540 | $22.60 | Shop at ECS Tuning | ||||
| only applies to Driver's side |
||||||||||
| 11 | Catch with key right | 1 | 51217162428 | $101.00 | Shop at ECS Tuning | |||||
| 11 | Catch with key code right | 1 | 51217199834 | Shop at ECS Tuning | ||||||
| 12 | Handle bracket base, left | 1 | 51217060293 | $1.35 | Shop at ECS Tuning | |||||
| 12 | Handle bracket base, right | 1 | 51217060294 | $1.35 | Shop at ECS Tuning | |||||
| 13 | Lock cylinder base left | 1 | 51217060667 | $1.60 | Shop at ECS Tuning | |||||
| 13 | Lock cylinder base right | 1 | 51217060668 | $1.60 | Shop at ECS Tuning | |||||
| 14 | Carrier, outside door handle, left | 1 | 51227199835 | $47.72 | Shop at ECS Tuning | |||||
| only applies to Passenger's side |
||||||||||
| 14 | Carrier, outside door handle, right | 1 | 51227199836 | $47.72 | Shop at ECS Tuning | |||||
| only applies to Driver's side |
||||||||||
| 14 | Carrier, outside door handle,front right | 1 | 51217199838 | Shop at ECS Tuning | ||||||
| 15 | Inner hex bolt | M5 | 2 | 51217133972 | $1.14 | Shop at ECS Tuning | ||||
| 17 | Lock plate | M8 | 2 | 41218215401 | $2.14 | Shop at ECS Tuning | ||||
| 18 | Door handle, inside left | SCHWARZ | 1 | 51417144545 | $21.56 | Shop at ECS Tuning | ||||
| 18 | Door handle inner right | SCHWARZ | 1 | 51417144546 | $21.56 | Shop at ECS Tuning | ||||
| 18 | Door handle, inside left | GRAU | 1 | 51417144547 | $21.56 | Shop at ECS Tuning | ||||
| 18 | Door handle inner right | GRAU | 1 | 51417144548 | $21.56 | Shop at ECS Tuning | ||||
| 18 | Door handle, inside left | BEIGE | 1 | 51417144549 | $21.56 | Shop at ECS Tuning | ||||
| 18 | Door handle inner right | BEIGE | 1 | 51417144550 | $21.56 | Shop at ECS Tuning | ||||
| 21 | Fillister head screw with collar | M4X14 | 2 | 46637659479 | $1.20 | Shop at ECS Tuning | ||||
| For vehicles with Comfort access and Light package only applies to Passenger's side |
S322A=Yes S563A=Yes |
|||||||||
| 22 | Covering door, primed left | 1 | 51217162433 | $22.50 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Light package only applies to Passenger's side When ordering indicate color code |
S322A=Yes S563A=Yes |
|||||||||
| 22 | Cover left painted | CODE - UNI/MET. | 1 | 51210399181 | $81.24 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort access and Light package only applies to Passenger's side |
S322A=Yes S563A=No |
|||||||||
| 22 | Covering door, primed left | 1 | 51217162431 | $22.50 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Light package only applies to Passenger's side When ordering indicate color code |
S322A=Yes S563A=No |
|||||||||
| 22 | Cover left painted | CODE - UNI/MET. | 1 | 51210399177 | $59.43 | ENDED, NoS | Shop at ECS Tuning | |||
| 23 | Bowd.cable,outside door handle front | 2 | 51217317560 | Shop at ECS Tuning | ||||||

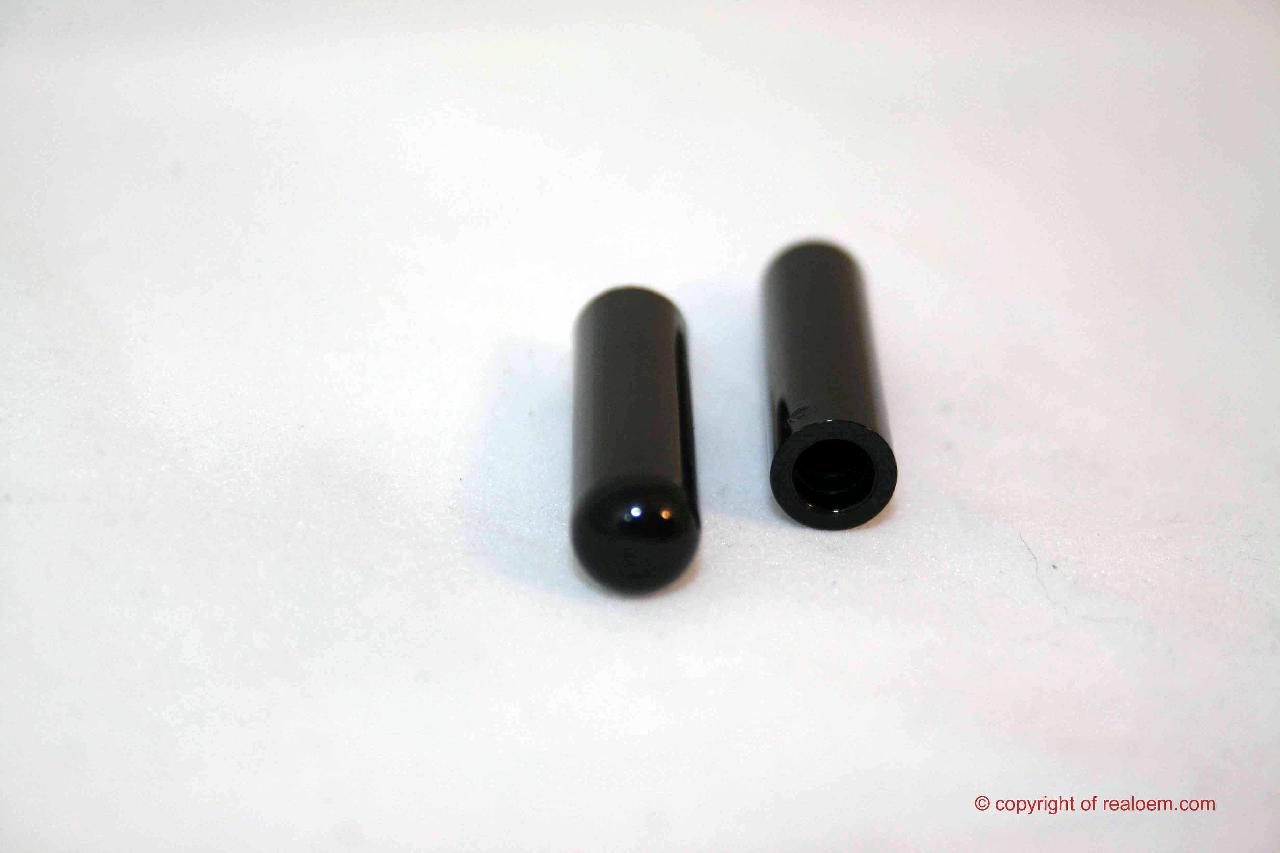

| 24 | Lock button | SCHWARZ | 2 | 51211805643 | $1.26 | Shop at ECS Tuning | ||||
| 26 | Covering right | 1 | 51217185562 | Shop at ECS Tuning | ||||||
| 28 | Circlip | 2 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
