Hood seals for BMW 3 Series E92 LCI 330xd (2013)

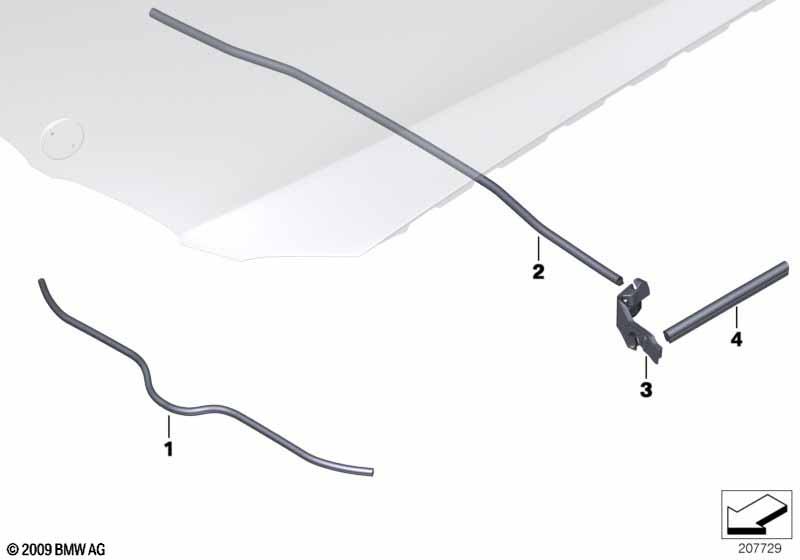

This Hood seals technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seal, engine bonnet, front | 1 | 51767225268 | Shop at ECS Tuning | ||||||
| 02 | Rear engine hood sealing | 1 | 51717060565 | $11.00 | Shop at ECS Tuning | |||||
| 03 | Molded part left | 1 | 51767182061 | $5.48 | Shop at ECS Tuning | |||||
| 03 | Molded part right | 1 | 51767182062 | $5.48 | Shop at ECS Tuning | |||||
| 04 | Sealing, engine compartment lateral rear | 2 | 51767158690 | $2.21 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 LCI 330xd Hood seals?
- This technical diagram illustrates the Hood seals within the Bodywork group for the 3 Series E92 LCI 330xd produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Seal, engine bonnet, front (Part #51767225268).
- Which models use the hardware listed in this Hood seals?
- The hardware and components featured in the Hood seals are specific to the 3 Series E92 LCI 330xd produced during 2013. These technical specifications ensure that parts like the Seal, engine bonnet, front (51767225268) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hood seals assembly?
- Each item in the Hood seals corresponds to the numbered list below the illustration. For the 3 Series E92 LCI 330xd, you can identify the Seal, engine bonnet, front by locating its position on the schematic, which then links to the official BMW part number 51767225268 for the Bodywork section.
