Roof for BMW 7 Series E32 730i (1994)

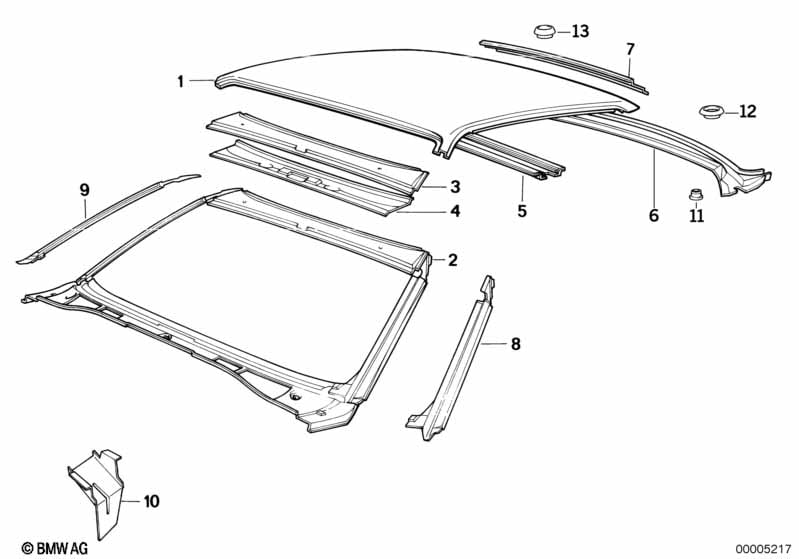

This Roof technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof covering lifting-sliding roof | 1 | 41311938102 | $1138.32 | ENDED | Shop at ECS Tuning | ||||
| 01 | Roof cover | 1 | 41311963140 | $622.17 | ENDED | Shop at ECS Tuning | ||||
| 02 | Apron | 1 | 09/1990 | 41328140177 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering plate | 1 | 41321963138 | $55.41 | ENDED | Shop at ECS Tuning | ||||
| 04 | Upper apron | 1 | 41321963141 | $112.05 | ENDED | Shop at ECS Tuning | ||||
| 05 | Roof bow | 1 | 41231963142 | $83.65 | Shop at ECS Tuning | |||||
| 06 | Rear window frame bottom part | 1 | 41321963143 | $62.10 | Shop at ECS Tuning | |||||
| 07 | Rear window frame upper part | 1 | 41321963144 | $38.24 | ENDED | Shop at ECS Tuning | ||||
| 08 | Left apron | 1 | 41321963521 | $85.56 | ENDED | Shop at ECS Tuning | ||||
| 09 | Right apron | 1 | 41321963522 | $85.56 | ENDED | Shop at ECS Tuning | ||||
| 13 | Blind plug | D=20MM | 2 | 51711801066 | $0.23 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Roof?
- This technical diagram illustrates the Roof within the Bodywork group for the 7 Series E32 730i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Roof covering lifting-sliding roof (Part #41311938102).
- Which models use the hardware listed in this Roof?
- The hardware and components featured in the Roof are specific to the 7 Series E32 730i produced during 1994. These technical specifications ensure that parts like the Roof covering lifting-sliding roof (41311938102) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof assembly?
- Each item in the Roof corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Roof covering lifting-sliding roof by locating its position on the schematic, which then links to the official BMW part number 41311938102 for the Bodywork section.
