Cavity shielding, side frame for BMW 1 Series F20 LCI 125i (2016)

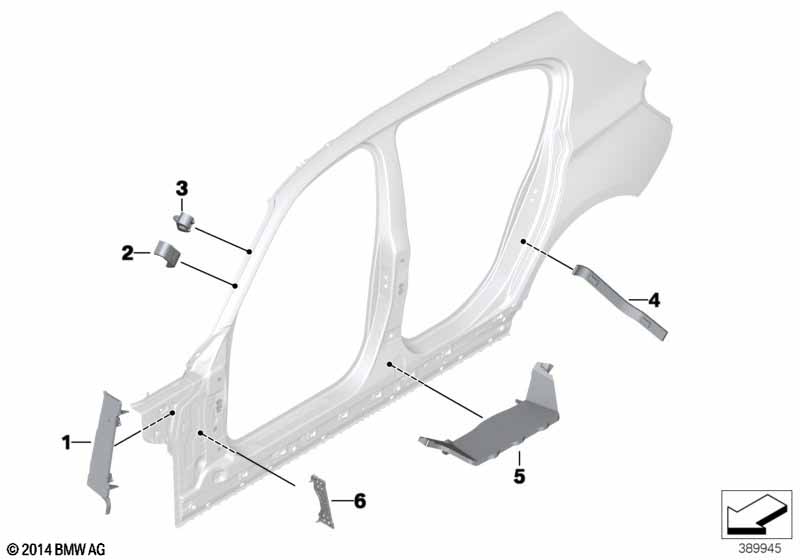

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 125i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulded part f wheel housing supp., left | 1 | 41007248639 | Shop at ECS Tuning | ||||||
| 01 | Moulded part f wheel housing supp.,right | 1 | 41007248640 | Shop at ECS Tuning | ||||||
| 02 | Molded part column A, top exterior | 2 | 41007269251 | Shop at ECS Tuning | ||||||
| 03 | Molded part column A, top interior | 2 | 41007269249 | Shop at ECS Tuning | ||||||
| 04 | Molded part, top, entrance, exterior | 2 | 41007248643 | Shop at ECS Tuning | ||||||
| 05 | Moulded part f column B, interior left | 1 | 41007248641 | Shop at ECS Tuning | ||||||
| 05 | Molded part f column B, interior right | 1 | 41007248642 | Shop at ECS Tuning | ||||||
| 06 | Molded part column A | 2 | 41217386159 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F20 LCI 125i Cavity shielding, side frame?
- This technical diagram illustrates the Cavity shielding, side frame within the Bodywork group for the 1 Series F20 LCI 125i produced during 2016. It provides a detailed exploded view of the components, identifying key parts such as the Moulded part f wheel housing supp., left (Part #41007248639).
- Which models use the hardware listed in this Cavity shielding, side frame?
- The hardware and components featured in the Cavity shielding, side frame are specific to the 1 Series F20 LCI 125i produced during 2016. These technical specifications ensure that parts like the Moulded part f wheel housing supp., left (41007248639) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cavity shielding, side frame assembly?
- Each item in the Cavity shielding, side frame corresponds to the numbered list below the illustration. For the 1 Series F20 LCI 125i, you can identify the Moulded part f wheel housing supp., left by locating its position on the schematic, which then links to the official BMW part number 41007248639 for the Bodywork section.
