Side panel/tail trim for BMW 1 Series F20 LCI 125i (2015)

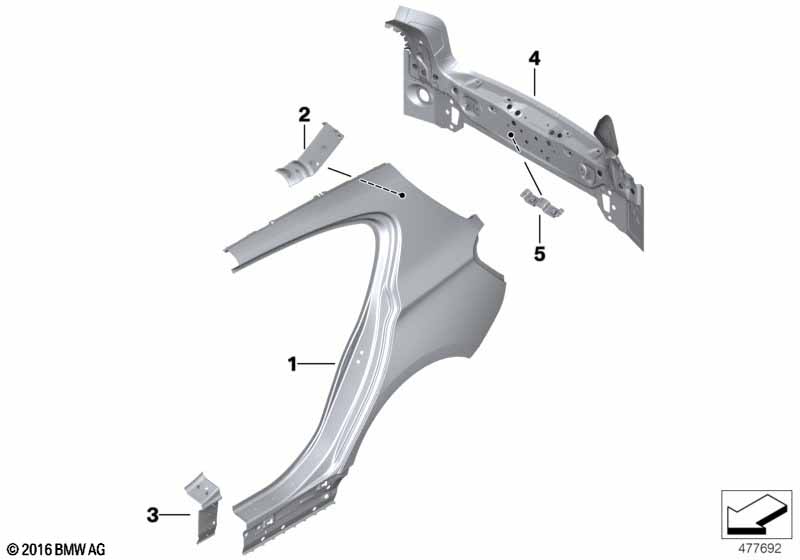

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 125i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 01 | Left rear side panel | 1 | 41007284387 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 7 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 32 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41007284391 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel, left | 1 | 41007284397 | Shop at ECS Tuning | ||||||
| 01 | Right rear side panel | 1 | 41007284388 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 7 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 32 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41007284392 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel, right | 1 | 41007284398 | Shop at ECS Tuning | ||||||
| 02 | Reinforcement plate, C-pillar, left | 1 | 41007284391 | Shop at ECS Tuning | ||||||
| 02 | Reinforcement plate, C-pillar, right | 1 | 41007284392 | Shop at ECS Tuning | ||||||
| 03 | Reinforcement plate, rocker panel, left | 1 | 41007284397 | Shop at ECS Tuning | ||||||
| 03 | Reinforcement plate, rocker panel, right | 1 | 41007284398 | Shop at ECS Tuning | ||||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 04 | Tail trim | 1 | 02/2018 | 41347284343 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 24 | 02/2018 | 83190301421 | $0.31 | Shop at ECS Tuning | ||||
| -- | Screw | SF PLUS M5X15 | 11 | 02/2018 | 83190301639 | $0.31 | Shop at ECS Tuning | |||
| -- | Punch rivet | N5 | 8 | 02/2018 | 83192158079 | $0.39 | Shop at ECS Tuning | |||
| -- | Cleaner R1 | 100ML | 1 | 02/2018 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Punch rivet N4 | 10 | 02/2018 | 83192457307 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 02/2018 | 83425A547B9 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 195 ML | 1 | 02/2018 | 83195A59935 | Shop at ECS Tuning | ||||
| 04 | Tail trim | 1 | 41007479536 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 24 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 11 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 8 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 10 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Blind rivet nut, countersunk head | M6 | 2 | 07146953045 | Shop at ECS Tuning | |||||
| 05 | Mount for SCR container | 1 | 41007482337 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
