Trunk lid for BMW 1 Series F20 LCI 118i (2015)

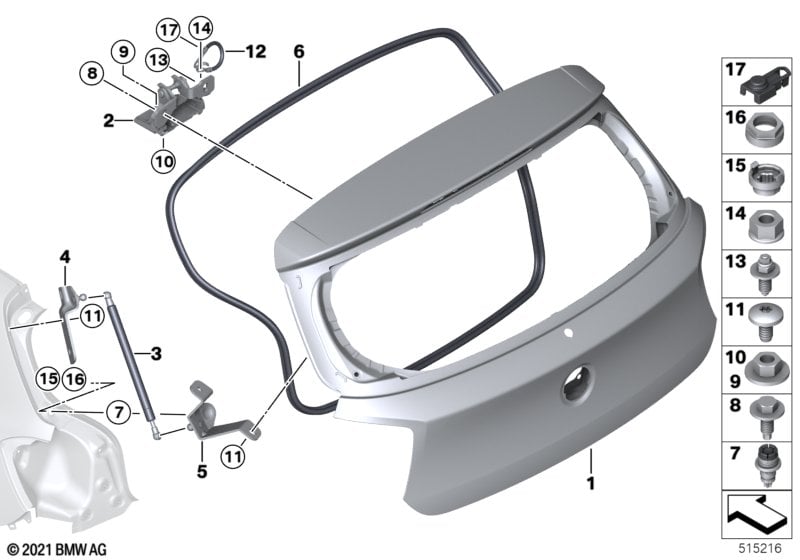

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 03/2015 | 41007420695 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Third stoplamp | 1 | 03/2015 | 63257241551 | +core | Shop at ECS Tuning | ||||
| 02 | Left trunk lid hinge | 1 | 41007284523 | +core | Shop at ECS Tuning | |||||
| 02 | Right trunk lid hinge | 1 | 41007284524 | +core | Shop at ECS Tuning | |||||
| 03 | Gas pressurized spring f trunk lid | 2 | 51247239871 | +core | Shop at ECS Tuning | |||||
| 04 | Strut, body gas pressure spring left | 1 | 51247248531 | Shop at ECS Tuning | ||||||
| 04 | Strut, body gas pressure spring right | 1 | 51247248532 | Shop at ECS Tuning | ||||||
| 05 | Mount,gas press. spring trunk lid left | 1 | 51247239873 | Shop at ECS Tuning | ||||||
| 05 | Mount,gas press. spring trunk lid right | 1 | 51247239874 | Shop at ECS Tuning | ||||||
| 06 | Trunk lid gasket | 1 | 51767329195 | +core | Shop at ECS Tuning | |||||
| 07 | Stop buffer | 2 | 51242994010 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M8X24 | 3 | 07147122217 | Shop at ECS Tuning | |||||
| 09 | Hex nut | BM6-8-ZNNIV SI | 4 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Hex nut with plate | M8 | 4 | 07/2013 | 07146959644 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex nut with plate | M8 | 4 | 07/2013 | 07149302543 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | 8 | 07/2013 | 07142994134 | Shop at ECS Tuning | |||||
| 12 | Earth strap, trunk lid | 1 | 61129250329 | ENDED | Shop at ECS Tuning | |||||
| 13 | Spacer bolt | M8X25/M5X12 | 1 | 61136941316 | Shop at ECS Tuning | |||||
| 14 | Flange nut | M5 | 1 | 07141732625 | $0.14 | Shop at ECS Tuning | ||||
| 15 | Twist protection | 2 | 51247161072 | Shop at ECS Tuning | ||||||
| 16 | Hex nut | 2 | 51247161070 | Shop at ECS Tuning | ||||||
| 17 | Covering cap | 2 | 51317409473 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
