Trunk lid/closing system for BMW 1 Series F21 LCI 120i (2019)

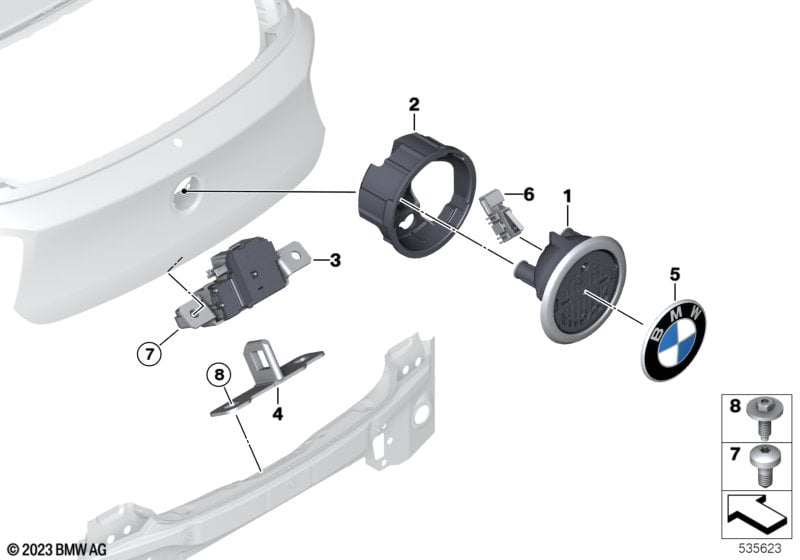

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Emblem button | 1 | 51247248535 | +core | Shop at ECS Tuning | |||||
| 02 | Supporting ring | 1 | 51247270728 | Shop at ECS Tuning | ||||||
| 03 | Trunk lid lock | 1 | 51247248075 | +core | Shop at ECS Tuning | |||||
| 04 | Striker trunk lid | 1 | 51247248076 | +core | Shop at ECS Tuning | |||||
| 05 | Badge | Ø 82MM | 1 | 51767288752 | +core | Shop at ECS Tuning | ||||
| 06 | Microswitch | 1 | 51247124470 | +core | Shop at ECS Tuning | |||||
| 07 | Torx bolt | ISA M8X19,5 | 2 | 07147153762 | $0.55 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X17 | 2 | 07147219509 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
