Side panel/tail trim for BMW 3 Series F30 320i (2015)

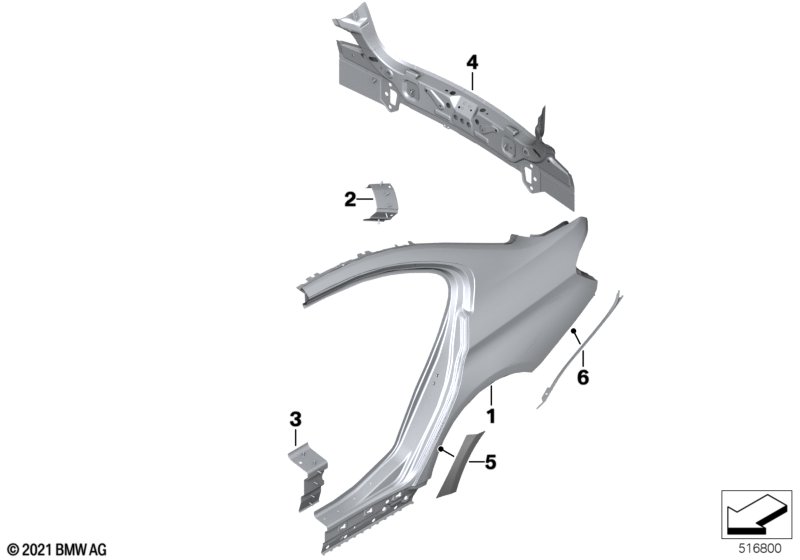

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 01 | Left rear side panel | 1 | 41007298171 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N1 | 1 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Blind rivet N3 | 12 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 39 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217298191 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel, left | 1 | 41217298207 | Shop at ECS Tuning | ||||||
| -- | Blind rivet nut, flat headed | M6 | 1 | 51248226003 | $2.13 | Shop at ECS Tuning | ||||
| 01 | Right rear side panel | 1 | 41007298172 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N1 | 1 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Blind rivet N3 | 12 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 39 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217298192 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel, right | 1 | 41217298208 | Shop at ECS Tuning | ||||||
| -- | Blind rivet nut, flat headed | M6 | 1 | 51248226003 | $2.13 | Shop at ECS Tuning | ||||
| 02 | Reinforcement plate, C-pillar, left | 1 | 41217298191 | Shop at ECS Tuning | ||||||
| 02 | Reinforcement plate, C-pillar, right | 1 | 41217298192 | Shop at ECS Tuning | ||||||
| 03 | Reinforcement plate, rocker panel, left | 1 | 41217298207 | Shop at ECS Tuning | ||||||
| 03 | Reinforcement plate, rocker panel, right | 1 | 41217298208 | Shop at ECS Tuning | ||||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 04 | Tail trim | 1 | 41347297994 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 20 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 6 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 8 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 8 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
