Body skeleton for BMW 3 Series F31 LCI 320dX (2019)

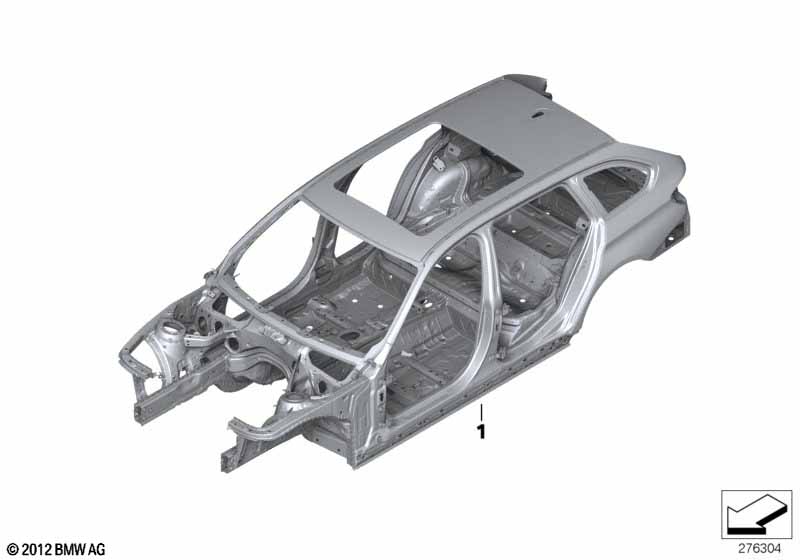

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 LCI 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body skeleton without chassis number | BASIS | 1 | 01/2015 | 41007298240 | ENDED, NoS | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 01/2015 | 51719636310 | Shop at ECS Tuning | |||||
| The following information is required when ordering: - Vehicle identification number |
||||||||||
| 01 | Body skeleton with chassis number | BASIS | 1 | 01/2015 | 41002258176 | ENDED, NoS | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 01/2015 | 51719636310 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof or Glass roof, electrical |
S402A=Yes S403A=Yes |
|||||||||
| 01 | Body skeleton without chassis number | BASIS | 1 | 01/2015 | 41007298244 | ENDED, NoS | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 01/2015 | 51719636310 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof or Glass roof, electrical The following information is required when ordering: - Vehicle identification number |
S402A=Yes S403A=Yes |
|||||||||
| 01 | Body skeleton with chassis number | BASIS | 1 | 01/2015 | 41002258311 | ENDED, NoS | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 01/2015 | 51719636310 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
