Cavity shielding, side frame for BMW 1 Series F21 LCI 118i (2015)

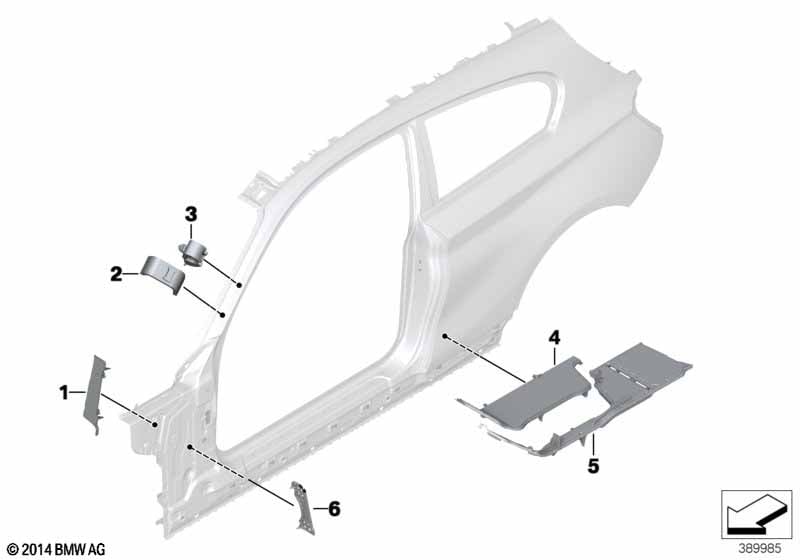

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulded part f wheel housing supp., left | 1 | 41007248639 | Shop at ECS Tuning | ||||||
| 01 | Moulded part f wheel housing supp.,right | 1 | 41007248640 | Shop at ECS Tuning | ||||||
| 02 | Molded part column A, top exterior | 2 | 41007269251 | Shop at ECS Tuning | ||||||
| 03 | Molded part column A, top interior | 2 | 41007269249 | Shop at ECS Tuning | ||||||
| 04 | Moulded part f column B, interior left | 1 | 41007265799 | Shop at ECS Tuning | ||||||
| 04 | Molded part f column B, interior right | 1 | 41007265800 | Shop at ECS Tuning | ||||||
| 05 | Molded part f column B, exterior left | 1 | 41007265801 | Shop at ECS Tuning | ||||||
| 05 | Moulded part f column B, exterior right | 1 | 41007265802 | Shop at ECS Tuning | ||||||
| 06 | Molded part column A | 2 | 41217386159 | Shop at ECS Tuning |
