Cavity shielding, side frame for BMW 3 Series F31 330dX (2015)

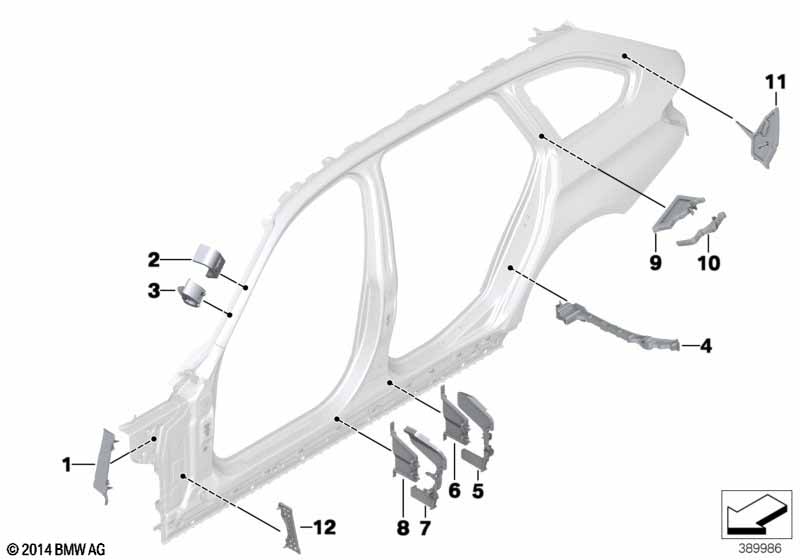

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 330dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulded part f wheel housing supp., left | 1 | 41007248639 | Shop at ECS Tuning | ||||||
| 01 | Moulded part f wheel housing supp.,right | 1 | 41007248640 | Shop at ECS Tuning | ||||||
| 02 | Molded part column A, top exterior | 2 | 41007269251 | Shop at ECS Tuning | ||||||
| 03 | Molded part column A, top interior | 2 | 41007269249 | Shop at ECS Tuning | ||||||
| 04 | Molded part, wheelhousing, outside | 2 | 12/2015 | 41217257781 | ENDED | Shop at ECS Tuning | ||||
| 04 | Molded part, wheelhousing, outside | 2 | 41218057138 | Shop at ECS Tuning | ||||||
| 05 | Molded part, B-pillar, rear outer left | 1 | 41217264071 | Shop at ECS Tuning | ||||||
| 05 | Molded part, B-pillar, rear outer right | 1 | 41217264072 | Shop at ECS Tuning | ||||||
| 06 | Moulded part f column B, interior | 2 | 41217239095 | Shop at ECS Tuning | ||||||
| 07 | Molded part, B-pillar, front outer left | 1 | 41217264069 | Shop at ECS Tuning | ||||||
| 07 | Mold. part, B-pillar, front outer right | 1 | 41217264070 | Shop at ECS Tuning | ||||||
| 08 | Moulded part f column B, interior | 2 | 41217239095 | Shop at ECS Tuning | ||||||
| 09 | Molded part column C, interior | 2 | 41007300865 | Shop at ECS Tuning | ||||||
| 10 | Molded part column C, exterior | 2 | 41007300867 | Shop at ECS Tuning | ||||||
| 11 | Molded part column D left | 1 | 41007300869 | Shop at ECS Tuning | ||||||
| 11 | Molded part column D right | 1 | 41007300870 | Shop at ECS Tuning | ||||||
| 12 | Molded part column A | 2 | 41217386159 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
