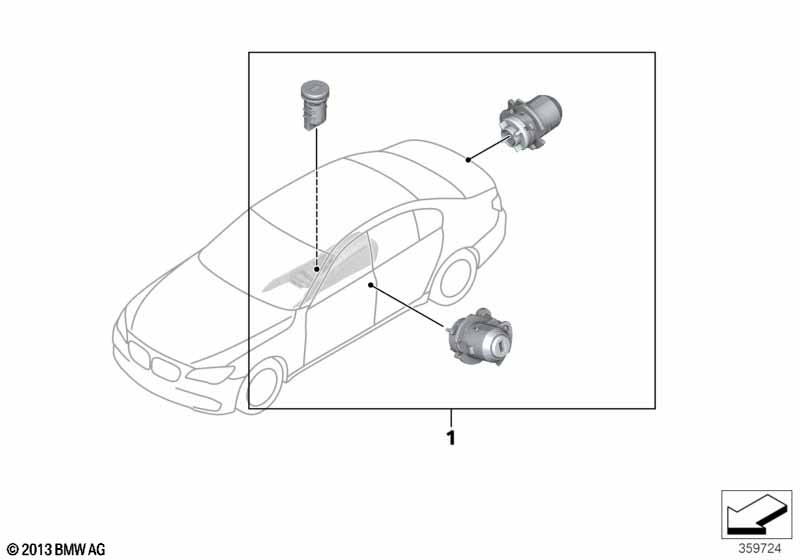

Master key locking for BMW 7 Series F01 750i (2012)
This Master key locking technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 01 | Set uniform locking system, coded | 1 | 51217251675 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Switch for passenger airbag | 1 | 61319483731 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 01 | Set uniform locking system, coded | CA | 1 | 51217251677 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Switch for passenger airbag | 1 | 61319483731 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F01 750i Master key locking?
- This technical diagram illustrates the Master key locking within the Bodywork group for the 7 Series F01 750i produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Set uniform locking system, coded (Part #51217251675).
- Which models use the hardware listed in this Master key locking?
- The hardware and components featured in the Master key locking are specific to the 7 Series F01 750i produced during 2012. These technical specifications ensure that parts like the Set uniform locking system, coded (51217251675) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Master key locking assembly?
- Each item in the Master key locking corresponds to the numbered list below the illustration. For the 7 Series F01 750i, you can identify the Set uniform locking system, coded by locating its position on the schematic, which then links to the official BMW part number 51217251675 for the Bodywork section.
