Body-side frame for BMW 2 Series F22 LCI 230i (2021)

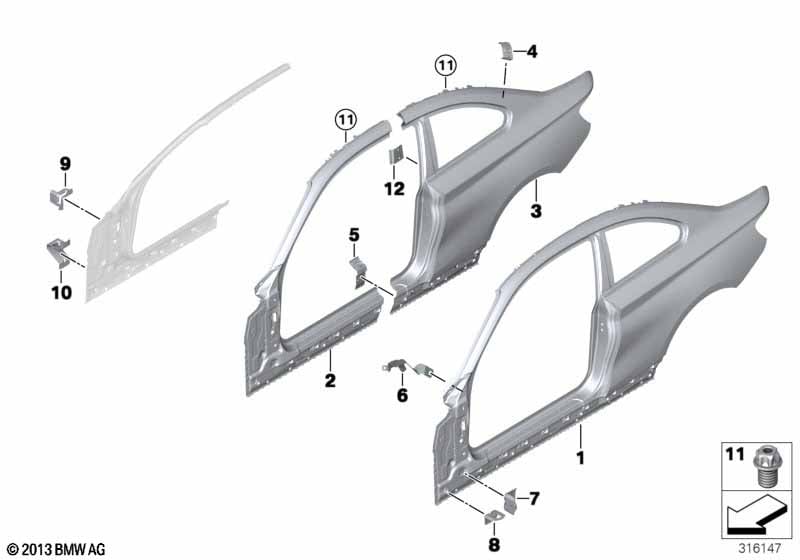

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 LCI 230i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, exterior, left | 1 | 41007372147 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 01 | Side frame, exterior, right | 1 | 41007372148 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Blind plug | D=15MM | 2 | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 02 | Left exterior column A | 1 | 41007342127 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 02 | Column A exterior right | 1 | 41007342128 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Blind plug | D=15MM | 1 | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 03 | Left rear side panel | 1 | 41007372151 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Blind plug | D=15MM | 1 | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 14 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Punch rivet | N5 | 18 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 9 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 6 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Plastic nut for coarse threaded pin | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, rocker panel, left | 1 | 41217374409 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, B-pillar, left | 1 | 41217374419 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217374421 | Shop at ECS Tuning | ||||||
| 03 | Right rear side panel | 1 | 41007372152 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Blind plug | D=15MM | 1 | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 14 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Punch rivet | N5 | 18 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 9 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 6 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Plastic nut for coarse threaded pin | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, rocker panel, right | 1 | 41217374410 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, B-pillar, right | 1 | 41217374420 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217374422 | Shop at ECS Tuning | ||||||
| 04 | Reinforcement plate, C-pillar, left | 1 | 41217374421 | Shop at ECS Tuning | ||||||
| 04 | Reinforcement plate, C-pillar, right | 1 | 41217374422 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement plate, rocker panel, left | 1 | 41217374409 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement plate, rocker panel, right | 1 | 41217374410 | Shop at ECS Tuning | ||||||
| 06 | Bracket, side panel, top left | 1 | 41217284399 | Shop at ECS Tuning | ||||||
| 06 | Bracket, side panel, top right | 1 | 41217284400 | Shop at ECS Tuning | ||||||
| 07 | Bracket, side panel, bottom | 2 | 41217284401 | Shop at ECS Tuning | ||||||
| 08 | Bracket, side panel column A | 2 | 01/2025 | 41117174365 | $1.85 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 4 | 01/2025 | 83190301421 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 2 | 01/2025 | 83192158654 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 2 | 01/2025 | 83192211217 | Shop at ECS Tuning | ||||
| 08 | Bracket, side panel column A | 2 | 41009624949 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 4 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 2 | 83192211217 | Shop at ECS Tuning | |||||
| 09 | Bracket, wash water container top | 1 | 41007284406 | Shop at ECS Tuning | ||||||
| 10 | Holder, washer fluid reservoir, lower | 1 | 41007284407 | Shop at ECS Tuning | ||||||
| Mounting for Roof rack system |
||||||||||
| 11 | Star screw with internal threads | M10 / M6 | 4 | 07147153767 | $1.98 | Shop at ECS Tuning | ||||
| 12 | Reinforcement plate, B-pillar, left | 1 | 41217374419 | Shop at ECS Tuning | ||||||
| 12 | Reinforcement plate, B-pillar, right | 1 | 41217374420 | Shop at ECS Tuning | ||||||
