Side frame section, center for BMW 2 Series F22 M240iX (2017)

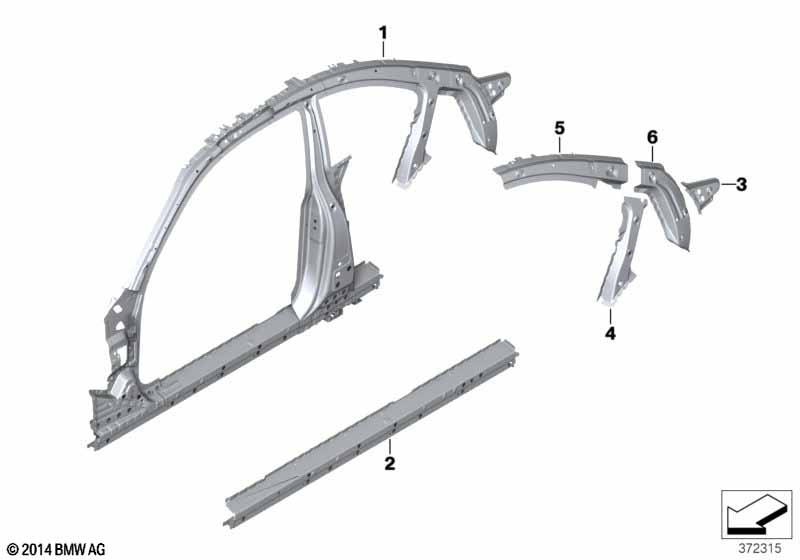

This Side frame section, center technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 M240iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, center left | 1 | 41007342105 | Shop at ECS Tuning | ||||||
| 01 | Side frame, center right | 1 | 41007342106 | Shop at ECS Tuning | ||||||
| 02 | Reinforcement, entry, left | 1 | 41217284373 | Shop at ECS Tuning | ||||||
| 02 | Reinforcement, entry, right | 1 | 41217284374 | Shop at ECS Tuning | ||||||
| 03 | Tension band column C, left | 1 | 41007342113 | Shop at ECS Tuning | ||||||
| 03 | Tension band column C, right | 1 | 41007342114 | Shop at ECS Tuning | ||||||
| 04 | C-pillar support, left | 1 | 41007342111 | Shop at ECS Tuning | ||||||
| 04 | C-pillar support, right | 1 | 41007342112 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement, interior roof frame, left | 1 | 41007342123 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement, interior roof frame,right | 1 | 41007342124 | Shop at ECS Tuning | ||||||
| 06 | C-pillar reinforcement, left | 1 | 41217342109 | Shop at ECS Tuning | ||||||
| 06 | C-pillar reinforcement, right | 1 | 41217342110 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F22 M240iX Side frame section, center?
- This technical diagram illustrates the Side frame section, center within the Bodywork group for the 2 Series F22 M240iX produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Side frame, center left (Part #41007342105).
- Which models use the hardware listed in this Side frame section, center?
- The hardware and components featured in the Side frame section, center are specific to the 2 Series F22 M240iX produced during 2017. These technical specifications ensure that parts like the Side frame, center left (41007342105) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side frame section, center assembly?
- Each item in the Side frame section, center corresponds to the numbered list below the illustration. For the 2 Series F22 M240iX, you can identify the Side frame, center left by locating its position on the schematic, which then links to the official BMW part number 41007342105 for the Bodywork section.
