Side frame section, inner for BMW 2 Series F22 M235iX (2016)

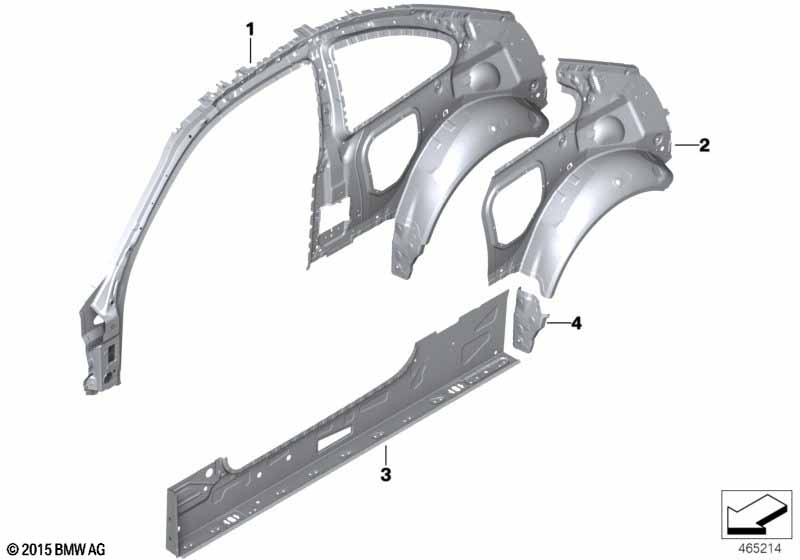

This Side frame section, inner technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 M235iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left interior side frame | 1 | 41007342095 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 01 | Right interior side frame | 1 | 41007342096 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| 02 | Wheel arch outer rear left | 1 | 41217342097 | Shop at ECS Tuning | ||||||
| 02 | Wheel arch outer rear right | 1 | 41217342098 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Earth pin | M6X12 | 1 | 41248185432 | Shop at ECS Tuning | |||||
| 03 | Side member, inner left | 1 | 41127297853 | Shop at ECS Tuning | ||||||
| 03 | Side member, inner right | 1 | 41127297854 | Shop at ECS Tuning | ||||||
| 04 | Cover panel, wheel house, left | 1 | 41217284353 | Shop at ECS Tuning | ||||||
| 04 | Cover panel, wheel house, right | 1 | 41217284354 | Shop at ECS Tuning | ||||||
