Cavity shielding, side frame for BMW 2 Series F22 LCI 220i (2021)

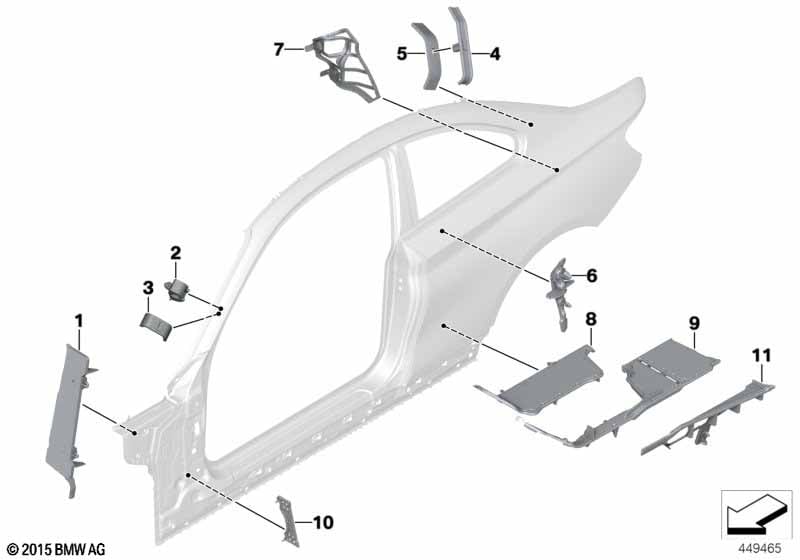

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 LCI 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulded part f wheel housing supp., left | 1 | 41007248639 | Shop at ECS Tuning | ||||||
| 01 | Moulded part f wheel housing supp.,right | 1 | 41007248640 | Shop at ECS Tuning | ||||||
| 02 | Molded part column A, top exterior | 2 | 41007269251 | Shop at ECS Tuning | ||||||
| 03 | Molded part column A, top interior | 2 | 41007269249 | Shop at ECS Tuning | ||||||
| 04 | Molded part column C, interior | 2 | 41007361825 | Shop at ECS Tuning | ||||||
| 05 | Molded part column C, exterior | 2 | 41007361824 | Shop at ECS Tuning | ||||||
| 06 | Molded panel, B-pillar, upper | 2 | 41007361823 | Shop at ECS Tuning | ||||||
| 07 | Moulded part f rear wheel housing | 2 | 41217390528 | Shop at ECS Tuning | ||||||
| 08 | Moulded part f column B, interior left | 1 | 41007265799 | Shop at ECS Tuning | ||||||
| 08 | Molded part f column B, interior right | 1 | 41007265800 | Shop at ECS Tuning | ||||||
| 09 | Molded part f column B, exterior left | 1 | 41007265801 | Shop at ECS Tuning | ||||||
| 09 | Moulded part f column B, exterior right | 1 | 41007265802 | Shop at ECS Tuning | ||||||
| 10 | Molded part column A | 2 | 41217386159 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F22 LCI 220i Cavity shielding, side frame?
- This technical diagram illustrates the Cavity shielding, side frame within the Bodywork group for the 2 Series F22 LCI 220i produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Moulded part f wheel housing supp., left (Part #41007248639).
- Which models use the hardware listed in this Cavity shielding, side frame?
- The hardware and components featured in the Cavity shielding, side frame are specific to the 2 Series F22 LCI 220i produced during 2021. These technical specifications ensure that parts like the Moulded part f wheel housing supp., left (41007248639) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cavity shielding, side frame assembly?
- Each item in the Cavity shielding, side frame corresponds to the numbered list below the illustration. For the 2 Series F22 LCI 220i, you can identify the Moulded part f wheel housing supp., left by locating its position on the schematic, which then links to the official BMW part number 41007248639 for the Bodywork section.
