Side panel/tail trim for BMW 4 Series F33 428i (2016)

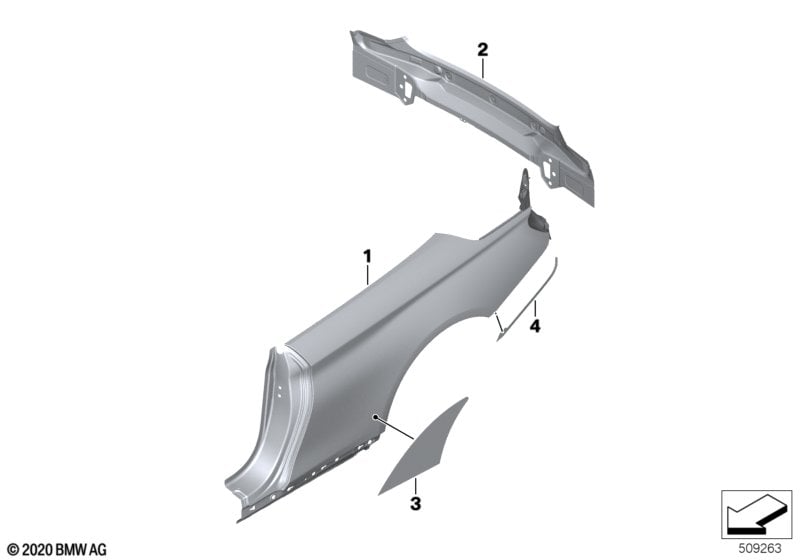

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 4 Series F33 428i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 01 | Left rear side panel | 1 | 41217347311 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 01 | Right rear side panel | 1 | 41217347312 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 19 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Punch rivet | N5 | 15 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Blind rivet N6 | 150 ST. | 8 | 83192158655 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 9 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 6 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Plastic nut for coarse threaded pin | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| 02 | Tail trim | 1 | 41007300996 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 22 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 9 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 18 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
