Trunk lid for BMW 2 Series F22 LCI M240i (2021)

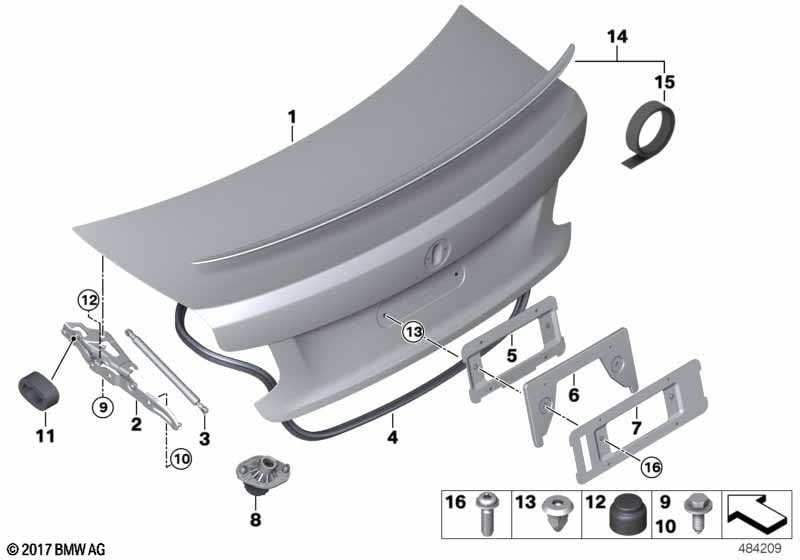

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 LCI M240i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41007335376 | Shop at ECS Tuning | ||||||
| 02 | Left trunk lid hinge | 1 | 41007373847 | Shop at ECS Tuning | ||||||
| 02 | Right trunk lid hinge | 1 | 41007373848 | Shop at ECS Tuning | ||||||
| 03 | Gas pressurized spring f trunk lid | 2 | 51247304556 | Shop at ECS Tuning | ||||||
| 04 | Trunk lid gasket | 1 | 51767403852 | Shop at ECS Tuning | ||||||
| 05 | License-plate carrier rear | US | 1 | 51139448724 | Shop at ECS Tuning | |||||
| 08 | Stop buffer | 2 | 51247458724 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt with washer | M8X23 | 4 | 07147131648 | $1.05 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X25 | 4 | 07147031946 | $0.82 | Shop at ECS Tuning | ||||
| 11 | Stop buffer | 2 | 51247145085 | $0.80 | Shop at ECS Tuning | |||||
| 12 | Cap | 2 | 51248391066 | $0.83 | Shop at ECS Tuning | |||||
| 13 | Expanding nut | 8X8 MM | 2 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Primed rear spoiler | -M- | 1 | 51628057648 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Adhesive tape | -M- | 1 | 51628062032 | Shop at ECS Tuning | |||||
| 15 | Adhesive tape | -M- | 1 | 51628062032 | Shop at ECS Tuning | |||||
