Hood / mounted parts for BMW MINI Countryman F60 LCI Cooper (2023)

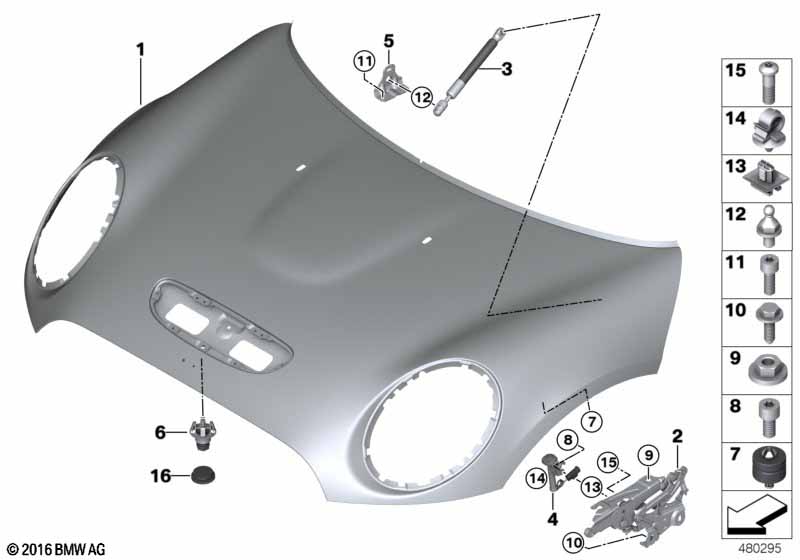

This Hood / mounted parts technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Screw no. 15 must be used in US vehicles. |
|||||||||
| 01 | Hood | 1 | 41009626977 | Shop at ECS Tuning | ||||||
| 02 | Left engine hood hinge | 1 | 41007449379 | Shop at ECS Tuning | ||||||
| 02 | Right engine hood hinge | 1 | 41007449380 | Shop at ECS Tuning | ||||||
| 03 | Gas strut, hood | 2 | 51237388105 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 04 | Actor, left | FGS | 1 | 51237374237 | Shop at ECS Tuning | |||||
| 04 | Actor, right | FGS | 1 | 51237374238 | Shop at ECS Tuning | |||||
| 05 | Bracket for gas spring, left | 1 | 41007438911 | Shop at ECS Tuning | ||||||
| 05 | Bracket for gas spring, right | 1 | 41007438912 | Shop at ECS Tuning | ||||||
| 06 | Adjuster | 2 | 51767183752 | $3.95 | Shop at ECS Tuning | |||||
| 07 | Stop buffer | 4 | 51237162448 | $3.52 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 08 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 09 | Hex nut with plate | M8 | 4 | 07149302543 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M8X25 | 4 | 07149231837 | Shop at ECS Tuning | |||||
| 12 | Ball pin | 4 | 07147159561 | $2.34 | Shop at ECS Tuning | |||||
| 13 | Plug-in connection bracket | 1 | 61139285769 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 13 | Plug-in connection bracket | 2 | 61139285769 | Shop at ECS Tuning | ||||||
