Body skeleton for BMW MINI F56 LCI JCW (2024)

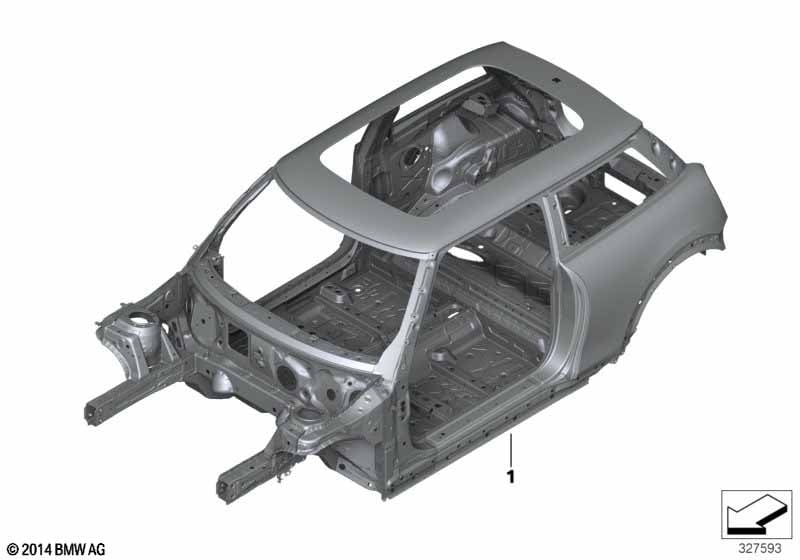

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body skeleton without chassis number | 1 | 41007389484 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| The following information is required when ordering: - Vehicle identification number |
||||||||||
| 01 | Body skeleton with chassis number | 1 | 41002411179 | ENDED, NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 01 | Body skeleton without chassis number | 1 | 41007389486 | ENDED, NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof The following information is required when ordering: - Vehicle identification number |
S402A=Yes |
|||||||||
| 01 | Body skeleton with chassis number | 1 | 41002411181 | ENDED, NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
