Splash wall parts for BMW MINI Countryman F60 One (2020)

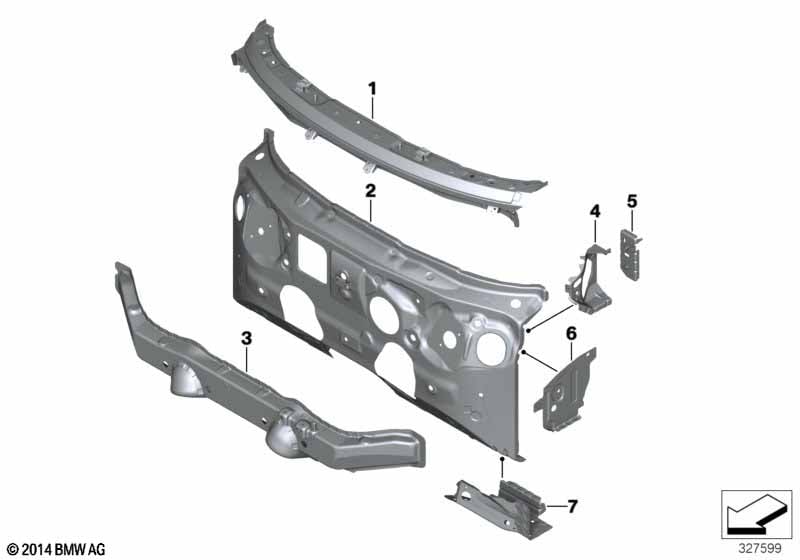

This Splash wall parts technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Firewall, upper section | 1 | 41007401993 | Shop at ECS Tuning | ||||||
| 02 | Splash wall | 1 | 41007387000 | Shop at ECS Tuning | ||||||
| 03 | Supporting strut, front wall | 1 | 41007386994 | Shop at ECS Tuning | ||||||
| 03 | Supporting strut, front wall | 1 | 41007401998 | Shop at ECS Tuning | ||||||
| 04 | Reinforcing mount f supporting tube,left | 1 | 41007360137 | Shop at ECS Tuning | ||||||
| 04 | Reinforcing mount f supporting tube,rig. | 1 | 41007360138 | Shop at ECS Tuning | ||||||
| 05 | Mount, supporting tube, right | 1 | 41007360150 | Shop at ECS Tuning | ||||||
| 05 | Mount, supporting tube, left | 1 | 41007360151 | Shop at ECS Tuning | ||||||
| 06 | Left interior column A | 1 | 41007387015 | Shop at ECS Tuning | ||||||
| 06 | Right interior column A | 1 | 41007387016 | Shop at ECS Tuning | ||||||
| 06 | Left interior column A | 1 | 41007402033 | Shop at ECS Tuning | ||||||
| 06 | Right interior column A | 1 | 41007402034 | Shop at ECS Tuning | ||||||
| 07 | Connection pcs, wheel house/entrance,lft | 1 | 41007360135 | Shop at ECS Tuning | ||||||
| 07 | Connection pcs,wheel house/entrance,rght | 1 | 41007360136 | Shop at ECS Tuning |
