Rear wheelhouse/floor parts for BMW MINI F56 Cooper (2021)

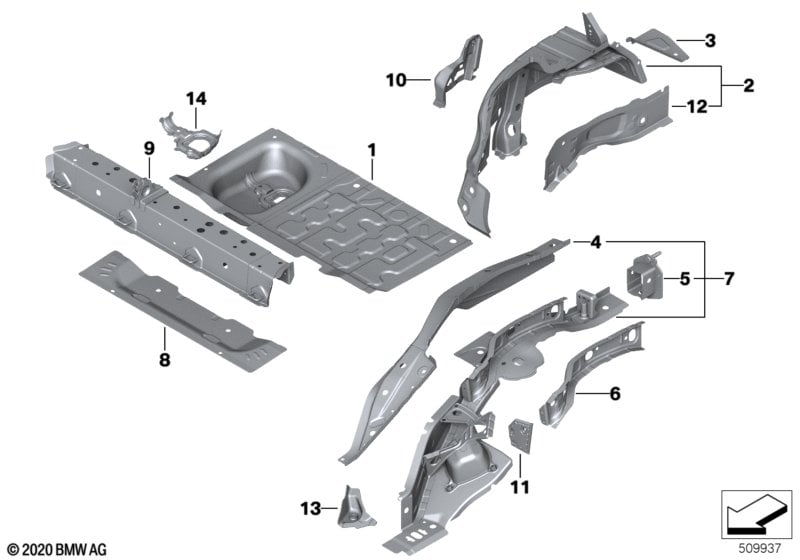

This Rear wheelhouse/floor parts technical drawing provides a detailed breakdown of the assembly for the MINI F56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 01 | Trunk floor | 1 | 41007402448 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 25 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 5 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| 02 | Rear left wheelhouse | 1 | 41007402321 | Shop at ECS Tuning | ||||||
| 02 | Rear right wheelhouse | 1 | 41007402322 | Shop at ECS Tuning | ||||||
| 03 | Cover panel, wheel house, left | 1 | 41007387967 | Shop at ECS Tuning | ||||||
| 03 | Cover panel, wheel house, right | 1 | 41007387968 | Shop at ECS Tuning | ||||||
| 04 | Side member, top left | 1 | 41007402377 | Shop at ECS Tuning | ||||||
| 04 | Side member, top right | 1 | 41007402378 | Shop at ECS Tuning | ||||||
| 05 | Mount, bumper left | 1 | 41117402665 | Shop at ECS Tuning | ||||||
| 05 | Mount, bumper right | 1 | 41117402666 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement for side member, left | 1 | 41117360235 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement for side member, right | 1 | 41117360236 | Shop at ECS Tuning | ||||||
| 07 | Rear left side member | 1 | 41007402401 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Molded section, side member, left | 1 | 41117287135 | Shop at ECS Tuning | ||||||
| -- | Reinforcement for side member, left | 1 | 41117360235 | Shop at ECS Tuning | ||||||
| 07 | Right rear side member | 1 | 41007402402 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Molded section, side member, right | 1 | 41117287136 | Shop at ECS Tuning | ||||||
| -- | Reinforcement for side member, right | 1 | 41117360236 | Shop at ECS Tuning | ||||||
| 08 | Cross member, trunk floor, bottom | 1 | 41117360214 | Shop at ECS Tuning | ||||||
| 09 | Cross member, trunk floor, front top | 1 | 41007402297 | Shop at ECS Tuning | ||||||
| 10 | Mount for backrest, rear left | 1 | 41117402663 | Shop at ECS Tuning | ||||||
| 10 | Mount for backrest, rear right | 1 | 41117402664 | Shop at ECS Tuning | ||||||
| 11 | Molded section, side member, left | 1 | 41117287135 | Shop at ECS Tuning | ||||||
| 11 | Molded section, side member, right | 1 | 41117287136 | Shop at ECS Tuning | ||||||
| 12 | End plate, side member, left | 1 | 41117473791 | NoS | Shop at ECS Tuning | |||||
| 12 | End plate, side member, right | 1 | 41117473792 | Shop at ECS Tuning | ||||||
| 14 | Bracket for spare wheel | 1 | 41125A238E3 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
