Body skeleton for BMW 2 Series F46 Gran Tourer LCI 218d (2022)

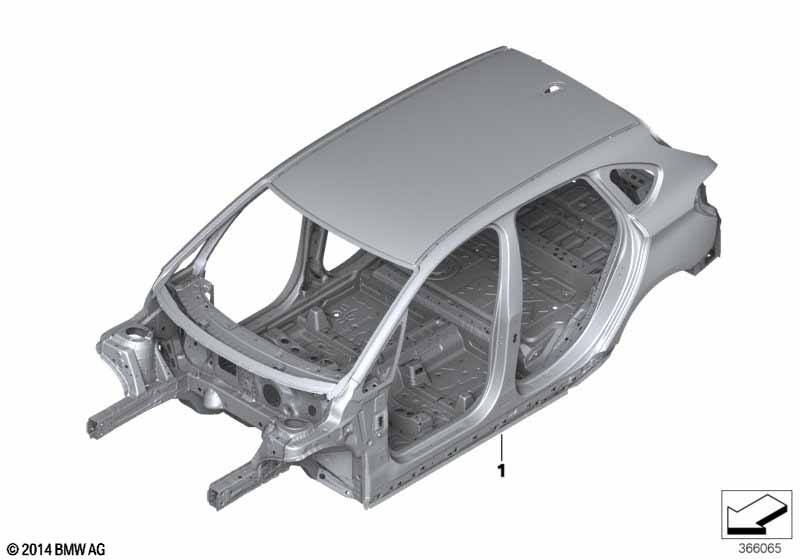

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body skeleton without chassis number | 1 | 41007436200 | ENDED, NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 01 | Body skeleton with chassis number | 1 | 41002407810 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 01 | Body skeleton without chassis number | 1 | 41007436201 | ENDED, NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 01 | Body skeleton with chassis number | 1 | 41002407811 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
