Body-side frame-parts for BMW 2 Series F45 Active Tourer 216i (2015)

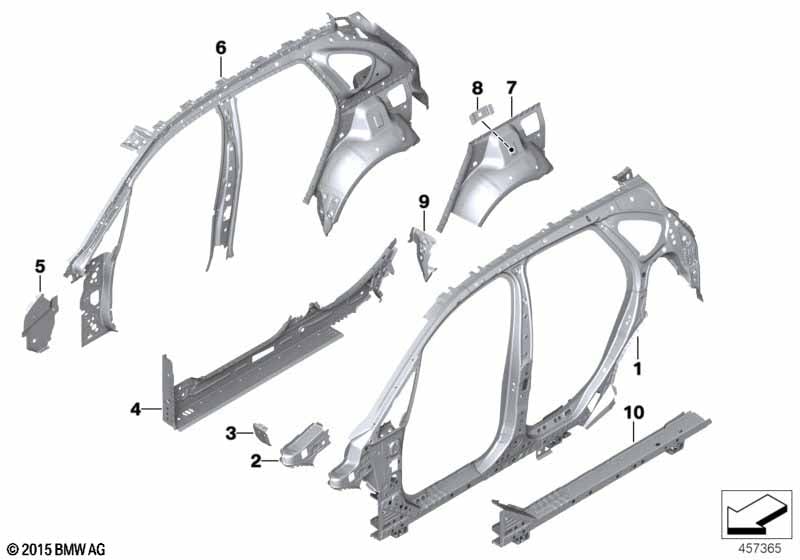

This Body-side frame-parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 216i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, center left | 1 | 41007408617 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| 01 | Side frame, center right | 1 | 41007408618 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 02 | Supporting strut,whl house, interior lft | 1 | 41007408633 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Moulded part f wheel housing supp.,front | 1 | 41007320735 | Shop at ECS Tuning | ||||||
| -- | Bulkhead support bracket, left | 1 | 41007408635 | Shop at ECS Tuning | ||||||
| 02 | Supporting strut,whl house,interior rght | 1 | 41007408634 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Moulded part f wheel housing supp.,front | 1 | 41007320735 | Shop at ECS Tuning | ||||||
| -- | Bulkhead support bracket, right | 1 | 41007408636 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead support bracket, left | 1 | 41007408635 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead support bracket, right | 1 | 41007408636 | Shop at ECS Tuning | ||||||
| 04 | Interior left entrance | 1 | 41007402219 | Shop at ECS Tuning | ||||||
| 04 | Interior right entrance | 1 | 41007402220 | Shop at ECS Tuning | ||||||
| 05 | Left interior column A | 1 | 41007402005 | NoS | Shop at ECS Tuning | |||||
| 05 | Right interior column A | 1 | 41007402006 | Shop at ECS Tuning | ||||||
| 06 | Left interior side frame | 1 | 41007408611 | Shop at ECS Tuning | ||||||
| 06 | Right interior side frame | 1 | 41007408612 | Shop at ECS Tuning | ||||||
| 07 | Wheelhouse rear, outer half left | 1 | 41007408637 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 17 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Bracket DWA | 1 | 41007284325 | Shop at ECS Tuning | ||||||
| 07 | Wheelhousing, rear, outer section, right | 1 | 41007408638 | Shop at ECS Tuning | ||||||
| 08 | Bracket DWA | 1 | 41007284325 | Shop at ECS Tuning | ||||||
| 09 | End panel, wheelhousing, outer left | 1 | 41009632455 | Shop at ECS Tuning | ||||||
| 09 | End panel, wheelhousing, outer right | 1 | 41009632456 | Shop at ECS Tuning | ||||||
| 10 | Reinforcement, entry, left | 1 | 41007436159 | Shop at ECS Tuning | ||||||
| 10 | Reinforcement, entry, right | 1 | 41007436160 | Shop at ECS Tuning | ||||||
