Rear wheelhouse/floor parts for BMW 2 Series F45 Active Tourer 216d (2018)

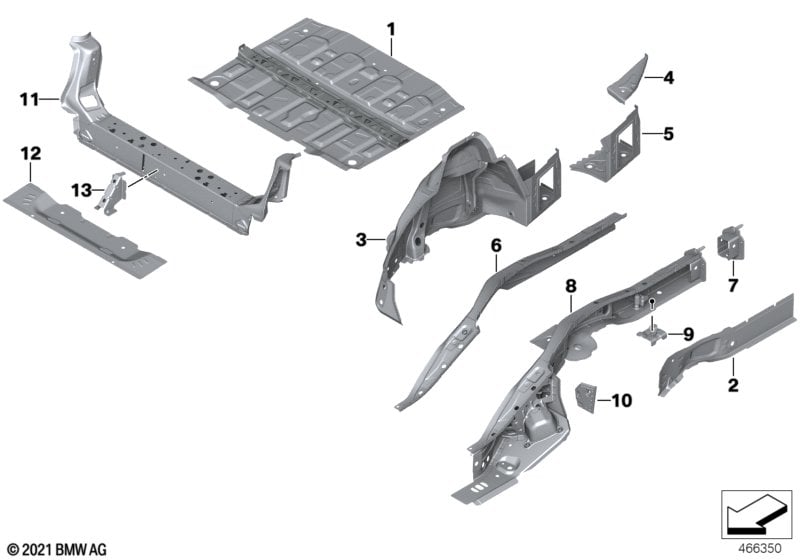

This Rear wheelhouse/floor parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 01 | Trunk floor | 1 | 41007402450 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 14 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| 02 | End plate, side member, left | 1 | 41007408609 | Shop at ECS Tuning | ||||||
| 02 | End plate, side member, right | 1 | 41007408610 | Shop at ECS Tuning | ||||||
| 03 | Rear left wheelhouse | 1 | 41007402333 | Shop at ECS Tuning | ||||||
| 03 | Rear right wheelhouse | 1 | 41007402334 | Shop at ECS Tuning | ||||||
| 04 | Extension for sidewall, rear left | 1 | 41007408639 | Shop at ECS Tuning | ||||||
| 04 | Extension for sidewall, rear right | 1 | 41007408640 | Shop at ECS Tuning | ||||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 05 | Trunk floor left | 1 | 41007408641 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 6 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Blind rivet N6 | 150 ST. | 3 | 83192158655 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 05 | Trunk floor right | 1 | 41007408642 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 6 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Blind rivet N6 | 150 ST. | 3 | 83192158655 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| 06 | Side member, top left | 1 | 41009627777 | NoS | Shop at ECS Tuning | |||||
| 06 | Side member, top right | 1 | 41009627778 | NoS | Shop at ECS Tuning | |||||
| 07 | Mount, bumper left | 1 | 41117402665 | Shop at ECS Tuning | ||||||
| 07 | Mount, bumper right | 1 | 41117402666 | Shop at ECS Tuning | ||||||
| 08 | Rear left side member | 1 | 41009627763 | NoS | Shop at ECS Tuning | |||||
| 08 | Right rear side member | 1 | 41009627764 | NoS | Shop at ECS Tuning | |||||
| 09 | Bracket for exhaust system | 1 | 41007408606 | Shop at ECS Tuning | ||||||
| 10 | Molded section, side member, left | 1 | 41117287135 | Shop at ECS Tuning | ||||||
| 10 | Molded section, side member, right | 1 | 41117287136 | Shop at ECS Tuning | ||||||
| 11 | Cross member, trunk floor, front top | 1 | 41007402301 | Shop at ECS Tuning | ||||||
| 12 | Cross member, differential mount, lower | 1 | 41007408605 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
