Roof for BMW 2 Series F46 Gran Tourer LCI 218d (2022)

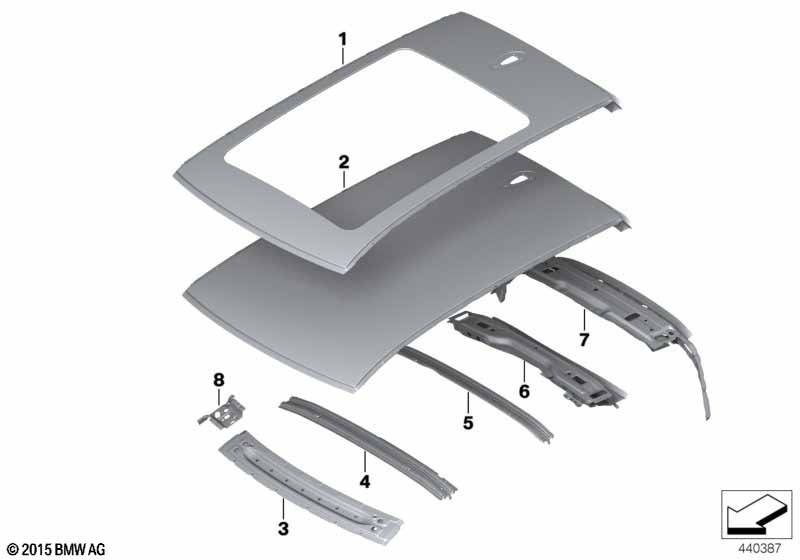

This Roof technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 01 | Panorama roof | 1 | 41007436186 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 9 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 11 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 02 | Roof | 1 | 41007436193 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 9 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 11 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 03 | Apron | 1 | 41007436185 | Shop at ECS Tuning | ||||||
| 04 | Roof bow, front | 1 | 41007436194 | Shop at ECS Tuning | ||||||
| 05 | Rear roof bow | 1 | 41007436195 | Shop at ECS Tuning | ||||||
| 07 | Rear window frame | 1 | 41007436170 | Shop at ECS Tuning | ||||||
| 08 | Connector, windshield cowl, lateral,left | 1 | 41007438845 | Shop at ECS Tuning | ||||||
| 08 | Connector, windshield cowl,lateral,right | 1 | 41007438846 | Shop at ECS Tuning | ||||||
