Engine hood/mounting parts for BMW 2 Series F46 Gran Tourer LCI 220dX (2022)

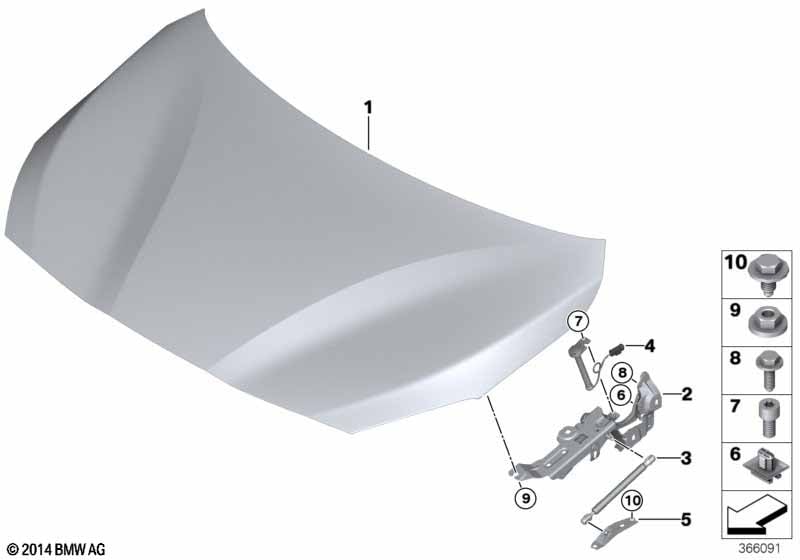

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 220dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood | 1 | 41117424742 | Shop at ECS Tuning | ||||||
| 02 | Left engine hood hinge | 1 | 41009632501 | Shop at ECS Tuning | ||||||
| 02 | Right engine hood hinge | 1 | 41009632502 | Shop at ECS Tuning | ||||||
| 03 | Gas spring front flap, active | 2 | 51237348853 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 04 | Actor, left | 1 | 51237348855 | Shop at ECS Tuning | ||||||
| 04 | Actor, right | 1 | 51237348856 | Shop at ECS Tuning | ||||||
| 05 | Bracket for gas spring, left | 1 | 51237300531 | Shop at ECS Tuning | ||||||
| 05 | Bracket for gas spring, right | 1 | 51237300532 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 06 | Plug-in connection bracket | 2 | 61139285769 | Shop at ECS Tuning | ||||||
| 07 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M8X25 | 4 | 07149231837 | Shop at ECS Tuning | |||||
| 09 | Hex nut with plate | M8 | 4 | 07149302543 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X12 | 4 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F46 Gran Tourer LCI 220dX Engine hood/mounting parts?
- This technical diagram illustrates the Engine hood/mounting parts within the Bodywork group for the 2 Series F46 Gran Tourer LCI 220dX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Hood (Part #41117424742).
- Which models use the hardware listed in this Engine hood/mounting parts?
- The hardware and components featured in the Engine hood/mounting parts are specific to the 2 Series F46 Gran Tourer LCI 220dX produced during 2022. These technical specifications ensure that parts like the Hood (41117424742) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine hood/mounting parts assembly?
- Each item in the Engine hood/mounting parts corresponds to the numbered list below the illustration. For the 2 Series F46 Gran Tourer LCI 220dX, you can identify the Hood by locating its position on the schematic, which then links to the official BMW part number 41117424742 for the Bodywork section.
