Trunk lid for BMW 2 Series F45 Active Tourer LCI 216d (2021)

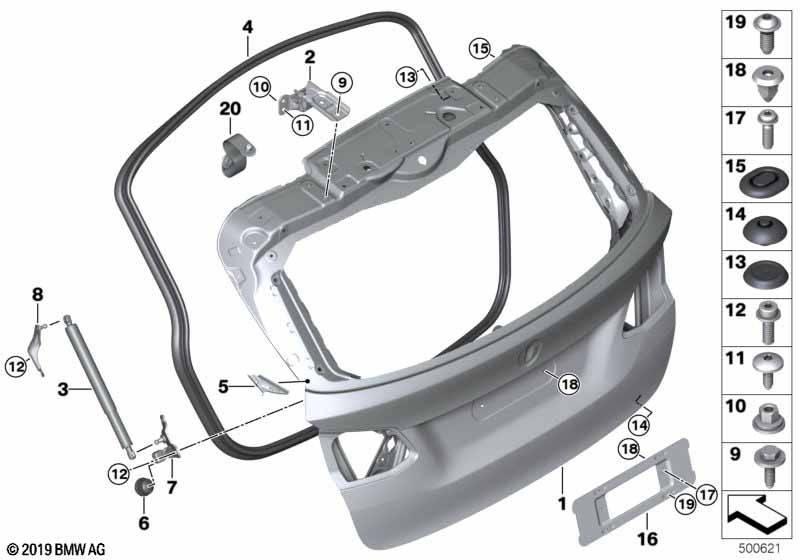

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41007317766 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Attachment kit, tailgate | VALUE PARTS | 1 | 41009650302 | Shop at ECS Tuning | |||||
| 02 | Left trunk lid hinge | 1 | 41007317769 | Shop at ECS Tuning | ||||||
| 02 | Right trunk lid hinge | 1 | 41007317770 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 03 | Spindle drive | 2 | 11/2019 | 51249482755 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism and Hot-climate version |
S316A=No S823A=Yes |
|||||||||
| 03 | Gas strut for trunk lid, upper left | 1 | 51247410915 | Shop at ECS Tuning | ||||||
| 03 | Gas strut for trunk lid, upper left | 1 | 51247410915 | Shop at ECS Tuning | ||||||
| 03 | Gas strut for trunk lid, upper right | 1 | 51247410916 | Shop at ECS Tuning | ||||||
| 03 | Gas strut for trunk lid, upper right | 1 | 51247410916 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism and Hot-climate version |
S316A=No S823A=No |
|||||||||
| 03 | Gas pressurized spring f trunk lid | 2 | 51247300791 | Shop at ECS Tuning | ||||||
| 04 | Trunk lid sealing | 1 | 51767440481 | Shop at ECS Tuning | ||||||
| 05 | Left inner trunk lid cover | 1 | 51767391783 | Shop at ECS Tuning | ||||||
| 05 | Right inner trunk lid cover | 1 | 51767391784 | Shop at ECS Tuning | ||||||
| 06 | Stop buffer | 2 | 51247340380 | Shop at ECS Tuning | ||||||
| 07 | Mount for spring seat, lower left | 1 | 51247348527 | Shop at ECS Tuning | ||||||
| 07 | Mount for spring seat, lower right | 1 | 51247348528 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism and Hot-climate version |
S316A=Yes S823A=Yes |
|||||||||
| 07 | Mount for spring seat, lower left | 1 | 51247348527 | Shop at ECS Tuning | ||||||
| 07 | Mount for spring seat, lower right | 1 | 51247348528 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism and Hot-climate version |
S316A=Yes S823A=No |
|||||||||
| 07 | Mount for spring seat, lower left | 1 | 51247348527 | Shop at ECS Tuning | ||||||
| 07 | Mount for spring seat, lower right | 1 | 51247348528 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism and Hot-climate version |
S316A=No S823A=Yes |
|||||||||
| 07 | Mount for spring seat, lower left | 1 | 51247348527 | Shop at ECS Tuning | ||||||
| 07 | Mount for spring seat, lower right | 1 | 51247348528 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism and Hot-climate version |
S316A=No S823A=No |
|||||||||
| 07 | Mount for gas strut, lower left | 1 | 12/2015 | 51247462101 | Shop at ECS Tuning | |||||
| 07 | Mount for gas strut, lower right | 1 | 12/2015 | 51247462102 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 08 | Bracket for spindle drive, left | 1 | 51247348525 | Shop at ECS Tuning | ||||||
| 08 | Bracket for spindle drive, right | 1 | 51247348526 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission or automatic trunk lid mechanism or Hot-climate version |
S205A=No S316A=No S823A=No |
|||||||||
| 08 | Mount, gas strut, upper left | 1 | 12/2015 | 51247462099 | Shop at ECS Tuning | |||||
| 08 | Mount, gas strut, upper right | 1 | 12/2015 | 51247462100 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and automatic trunk lid mechanism and Hot-climate version |
S205A=Yes S316A=No S823A=Yes |
|||||||||
| 08 | Mount, spring seat, upper left | 1 | 12/2015 | 51247462097 | Shop at ECS Tuning | |||||
| 08 | Mount, spring seat, upper right | 1 | 12/2015 | 51247462098 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and automatic trunk lid mechanism and Hot-climate version |
S205A=Yes S316A=No S823A=No |
|||||||||
| 08 | Mount, spring seat, upper left | 1 | 12/2015 | 51247462097 | Shop at ECS Tuning | |||||
| 08 | Mount, spring seat, upper right | 1 | 12/2015 | 51247462098 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and automatic trunk lid mechanism and Hot-climate version |
S205A=No S316A=No S823A=Yes |
|||||||||
| 08 | Mount, spring seat, upper left | 1 | 12/2015 | 51247462097 | Shop at ECS Tuning | |||||
| 08 | Mount, spring seat, upper right | 1 | 12/2015 | 51247462098 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and automatic trunk lid mechanism and Hot-climate version |
S205A=No S316A=No S823A=No |
|||||||||
| 08 | Mount, spring seat, upper left | 1 | 12/2015 | 51247462097 | Shop at ECS Tuning | |||||
| 08 | Mount, spring seat, upper right | 1 | 12/2015 | 51247462098 | Shop at ECS Tuning | |||||
| Trunk hinge on trunk | ||||||||||
| 09 | Hex bolt with washer | M8X30 | 4 | 07143428484 | $1.13 | Shop at ECS Tuning | ||||
| Trunk hinge on body | ||||||||||
| 11 | Hex bolt with washer | M8X30 | 6 | 07143428484 | $1.13 | Shop at ECS Tuning | ||||
| 12 | Countersunk screw | 10X20 ZNNID SW | 8 | 07119909406 | Shop at ECS Tuning | |||||
| 13 | Blind plug | D=25MM | 4 | 51717175886 | $0.63 | Shop at ECS Tuning | ||||
| 14 | Blind plug | D=6,5MM | 2 | 07147221349 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 15 | Blind plug | 18X24MM | 2 | 51710588794 | $0.85 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 16 | License plate bracket, rear | JAPAN | 1 | 51137176631 | Shop at ECS Tuning | |||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 16 | License-plate carrier rear | US | 1 | 51139448724 | Shop at ECS Tuning | |||||
| 17 | Phillips screw f plastic material | TS5X16MM | 2 | 51118122522 | $0.39 | Shop at ECS Tuning | ||||
| 18 | Expanding nut | 8X8 MM | 2 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| For vehicles with National version China REGISTRATION PLATE MOUNTING |
L8AAA=Yes |
|||||||||
| 19 | ISA screw | M6X16 | 4 | 11377513874 | $0.52 | Shop at ECS Tuning | ||||
