Body-side frame for BMW MINI F55 Cooper (2018)

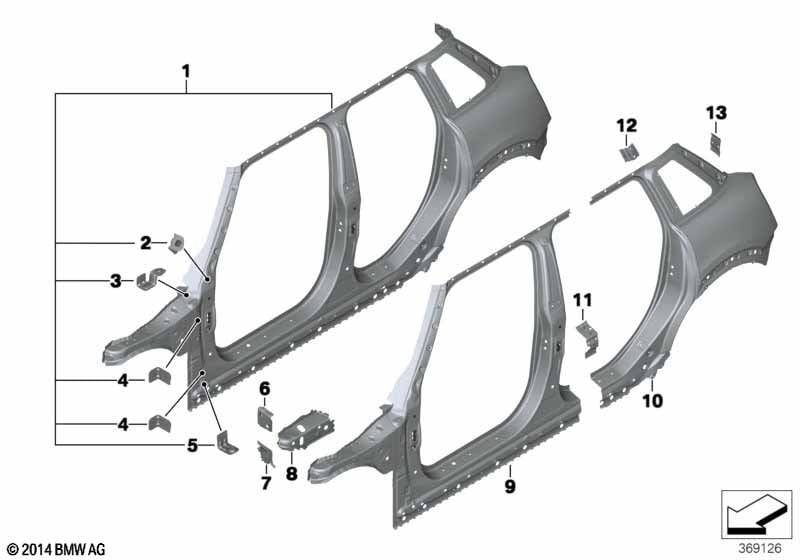

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the MINI F55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, exterior, left | 1 | 41007408787 | Shop at ECS Tuning | ||||||
| 01 | Side frame, exterior, right | 1 | 41007408788 | Shop at ECS Tuning | ||||||
| 02 | Bracket, side panel column A left | 1 | 41007389467 | Shop at ECS Tuning | ||||||
| 02 | Bracket, side panel, column A right | 1 | 41007389468 | Shop at ECS Tuning | ||||||
| 03 | Bracket, side panel, top left | 1 | 41007389471 | Shop at ECS Tuning | ||||||
| 03 | Bracket, side panel, top right | 1 | 41007389472 | Shop at ECS Tuning | ||||||
| 04 | Bracket, side panel, center | 2 | 41007389466 | Shop at ECS Tuning | ||||||
| 05 | Bracket, side panel, bottom | 1 | 41007389489 | Shop at ECS Tuning | ||||||
| 06 | Moulded part f wheel housing supp.,front | 1 | 41007292801 | Shop at ECS Tuning | ||||||
| 07 | Bulkhead support bracket, left | 1 | 41007387009 | Shop at ECS Tuning | ||||||
| 07 | Bulkhead support bracket, right | 1 | 41007387010 | Shop at ECS Tuning | ||||||
| 08 | Supporting strut,whl house, interior lft | 1 | 41007387005 | Shop at ECS Tuning | ||||||
| 08 | Supporting strut,whl house,interior rght | 1 | 41007387006 | Shop at ECS Tuning | ||||||
| 09 | Left exterior column A | 1 | 41007408825 | Shop at ECS Tuning | ||||||
| 09 | Column A exterior right | 1 | 41007408826 | Shop at ECS Tuning | ||||||
| 10 | Left rear side panel | 1 | 41007408811 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 4 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Seam sealer | 300ML | 1 | 83420428349 | ENDED | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 35 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 6 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Plastic nut for coarse threaded pin | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, rocker panel, left | 1 | 41217407923 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217407925 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, left | 1 | 41217407927 | Shop at ECS Tuning | ||||||
| 10 | Right rear side panel | 1 | 41007408812 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 4 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Seam sealer | 300ML | 1 | 83420428349 | ENDED | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 35 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 6 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Plastic nut for coarse threaded pin | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, rocker panel, right | 1 | 41217407924 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217407926 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, right | 1 | 41217407928 | Shop at ECS Tuning | ||||||
| 11 | Reinforcement plate, rocker panel, left | 1 | 41217407923 | Shop at ECS Tuning | ||||||
| 11 | Reinforcement plate, rocker panel, right | 1 | 41217407924 | Shop at ECS Tuning | ||||||
| 12 | Reinforcement plate, C-pillar, left | 1 | 41217407925 | Shop at ECS Tuning | ||||||
| 12 | Reinforcement plate, C-pillar, right | 1 | 41217407926 | Shop at ECS Tuning | ||||||
| 13 | Reinforcement plate, D-pillar, left | 1 | 41217407927 | Shop at ECS Tuning | ||||||
| 13 | Reinforcement plate, D-pillar, right | 1 | 41217407928 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
