Cavity shielding, side frame for BMW MINI F55 Cooper (2020)

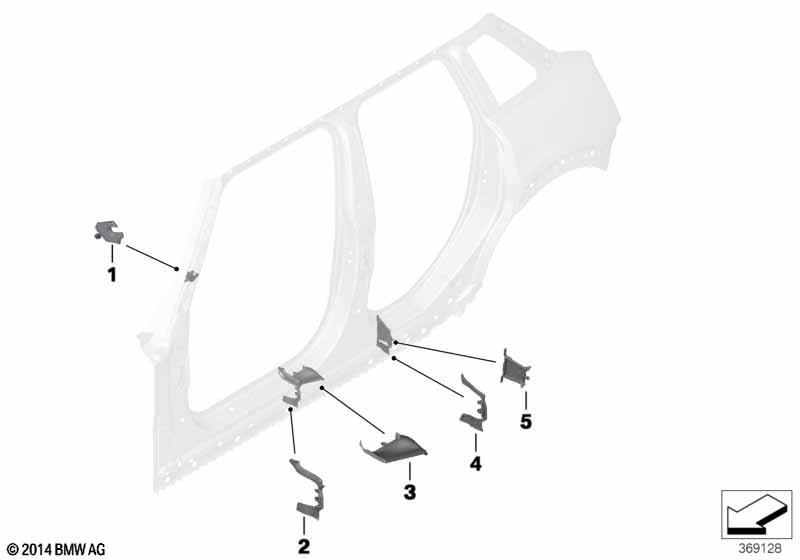

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the MINI F55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Molded part column A left | 1 | 41107287625 | Shop at ECS Tuning | ||||||
| 01 | Molded part column A right | 1 | 41107287626 | Shop at ECS Tuning | ||||||
| 02 | Moulded part,entrance outside,front left | 1 | 41007316307 | Shop at ECS Tuning | ||||||
| 02 | Moulded part,entrance outside,front rig. | 1 | 41007316308 | Shop at ECS Tuning | ||||||
| 03 | Molded part f entrance front left | 1 | 41007407269 | Shop at ECS Tuning | ||||||
| 03 | Molded part f entrance front right | 1 | 41007407270 | Shop at ECS Tuning | ||||||
| 04 | Molded part f column B, exterior left | 1 | 41007316569 | Shop at ECS Tuning | ||||||
| 04 | Moulded part f column B, exterior right | 1 | 41007316570 | Shop at ECS Tuning | ||||||
| 05 | Moulded part f column B, interior | 1 | 41007316309 | Shop at ECS Tuning |
