Rear door - hinge/door brake for BMW MINI F55 Cooper (2020)

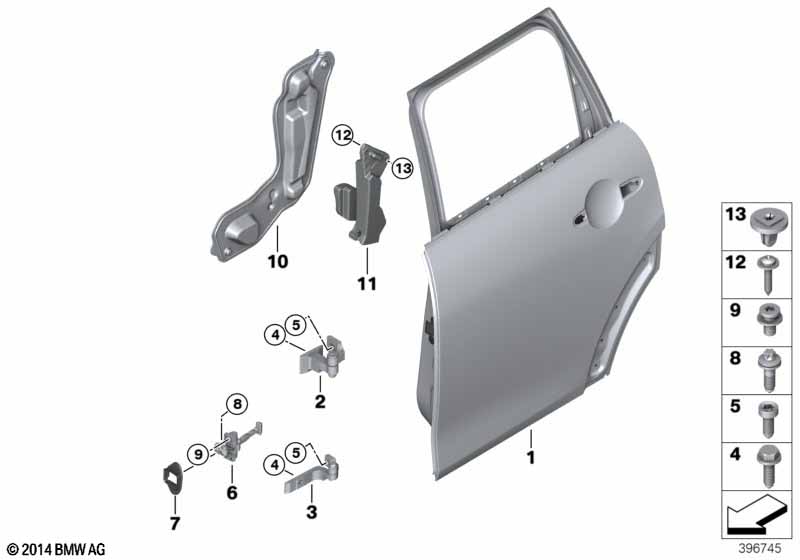

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the MINI F55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 07/2024 | 41007327449 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door rear right | 1 | 07/2024 | 41007327450 | Shop at ECS Tuning | |||||
| 02 | Left upper rear door hinge | 1 | 41527284545 | +core | Shop at ECS Tuning | |||||
| 02 | Right upper rear door hinge | 1 | 41527284546 | +core | Shop at ECS Tuning | |||||
| 03 | Left lower rear door hinge | 1 | 41527284543 | +core | Shop at ECS Tuning | |||||
| 03 | Right lower rear door hinge | 1 | 41527284544 | +core | Shop at ECS Tuning | |||||
| 04 | Hexagon screw with taper | M12X35 | 1 | 07148499258 | Shop at ECS Tuning | |||||
| 05 | Torx-countersunk head screw | ISA M10X28 | 1 | 07147266068 | Shop at ECS Tuning | |||||
| 06 | Rear door brake | 1 | 51227322423 | Shop at ECS Tuning | ||||||
| 07 | Left rear door brake gasket | 1 | 51227497233 | Shop at ECS Tuning | ||||||
| 07 | Right rear door brake gasket | 1 | 51227497234 | Shop at ECS Tuning | ||||||
| 08 | Torx-bolt with washer | ASA M8X22 | 1 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Torx-bolt with washer | ISA M6X12 | 2 | 51226976687 | $0.59 | Shop at ECS Tuning | ||||
| 10 | Sound insulating door rear left | 1 | 51487386609 | Shop at ECS Tuning | ||||||
| 10 | Sound insulating door rear right | 1 | 51487386610 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
