Master key locking for BMW 2 Series F46 Gran Tourer 218i (2018)

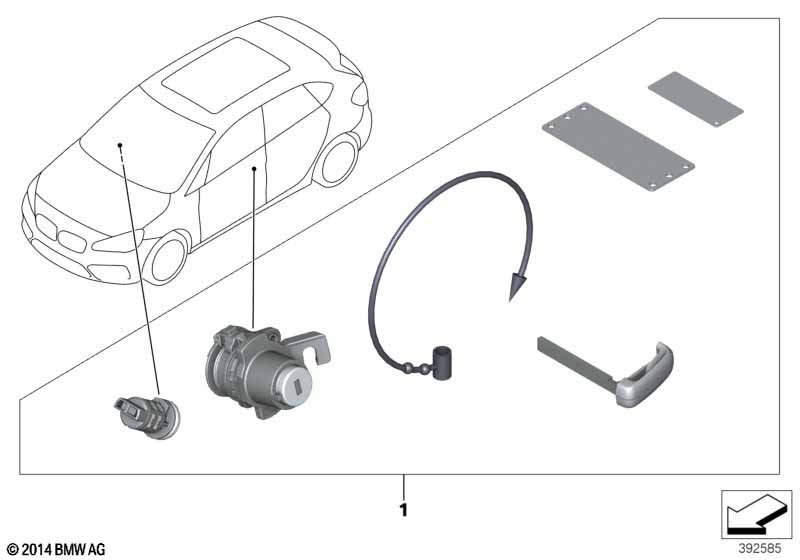

This Master key locking technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sport Line and Luxury Line |
P7ACA=No P7S2A=No |
|||||||||
| 01 | Master key locking, mechanical | RL | 1 | 51217479342 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line or Luxury Line |
P7ACA=Yes P7S2A=Yes |
|||||||||
| 01 | Master key locking, mechanical | RL | 1 | 51217479346 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F46 Gran Tourer 218i Master key locking?
- This technical diagram illustrates the Master key locking within the Bodywork group for the 2 Series F46 Gran Tourer 218i produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Master key locking, mechanical (Part #51217479342).
- Which models use the hardware listed in this Master key locking?
- The hardware and components featured in the Master key locking are specific to the 2 Series F46 Gran Tourer 218i produced during 2018. These technical specifications ensure that parts like the Master key locking, mechanical (51217479342) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Master key locking assembly?
- Each item in the Master key locking corresponds to the numbered list below the illustration. For the 2 Series F46 Gran Tourer 218i, you can identify the Master key locking, mechanical by locating its position on the schematic, which then links to the official BMW part number 51217479342 for the Bodywork section.
