Front body bracket for BMW 7 Series G12 725Ld (2017)

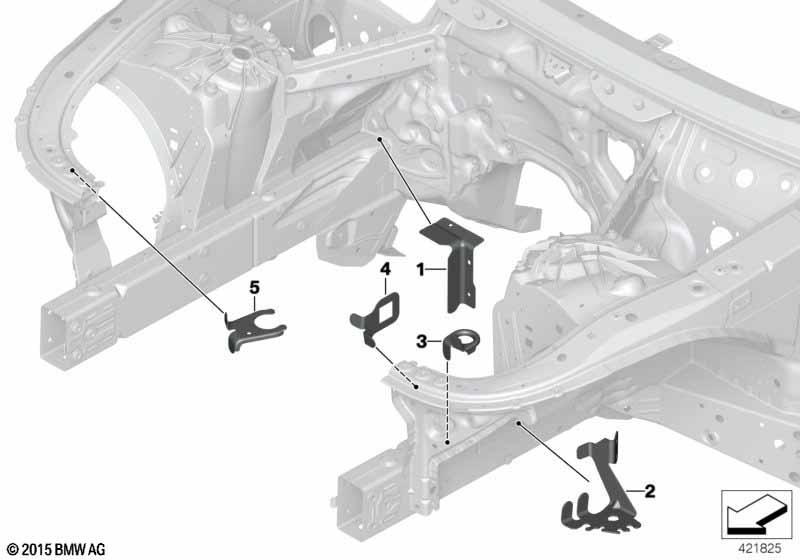

This Front body bracket technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 725Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering panel for engine beam left | 1 | 41007412935 | Shop at ECS Tuning | ||||||
| 01 | Covering panel for engine beam right | 1 | 41007412936 | Shop at ECS Tuning | ||||||
| 02 | Holder, brake hose, left | 1 | 41007412933 | Shop at ECS Tuning | ||||||
| 02 | Holder, brake hose, right | 1 | 41007412934 | Shop at ECS Tuning | ||||||
| 03 | Holder, expansion tank, bottom | 1 | 41007412939 | Shop at ECS Tuning | ||||||
| 04 | Holder, expansion tank, top | 1 | 41007412937 | Shop at ECS Tuning | ||||||
| 05 | Bracket. intake silencer | 1 | 41007412938 | Shop at ECS Tuning |
