Body skeleton for BMW MS BMW Motorsport M235i Racing

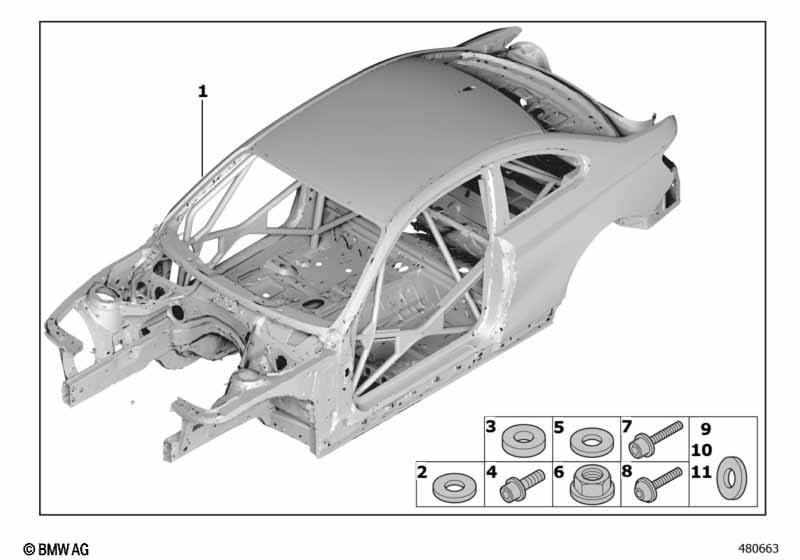

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the MS BMW Motorsport M235i Racing. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body-in-white | SPEC 2015 | 1 | 12/2014 | 41008417100 | ENDED | Shop at ECS Tuning | |||
| To order item 1, please consult the following contact first: raceparts@bmw-motorsport.com The order must be confirmed manually. |
||||||||||
| 01 | Body-in-white | SPEC 2014 | 1 | 12/2014 | 41008416499 | ENDED | Shop at ECS Tuning | |||
| 02 | Circlip | M8 NORDLOCK | 6 | 07107767477 | Shop at ECS Tuning | |||||
| 03 | Shim | SHIM KOMBITRÄG. | 8 | 41008416526 | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | M8X25 | 6 | 07119919979 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Washer | A8,4 | 12 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M8 KAY HWM | 12 | 11002190418 | Shop at ECS Tuning | |||||
| 07 | Fillister-head screw | M8X25 | 4 | 07119919979 | $0.30 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M8X25 10.9 | 2 | 51417742155 | Shop at ECS Tuning | |||||
| 09 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 10 | Washer | A8,4 | 10 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Washer | 8,4-ST-ZNS | 6 | 07119901750 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
