Side frame section, center for BMW 7 Series G12 740LiX (2018)

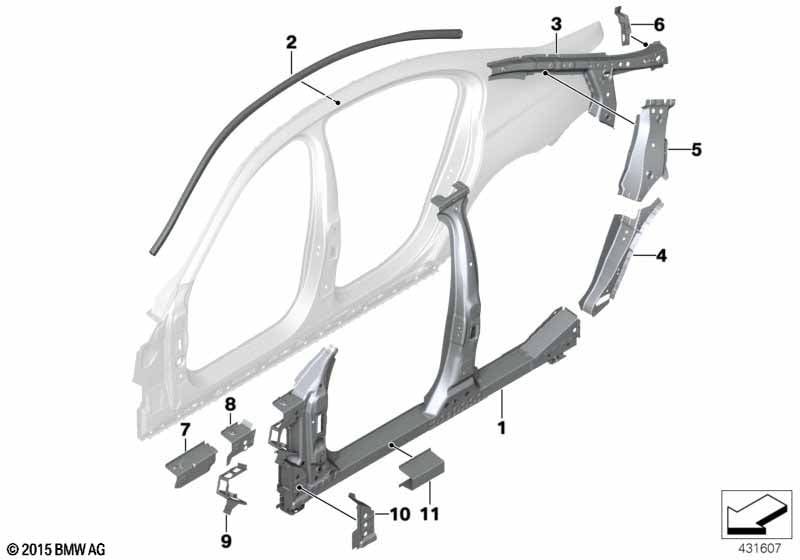

This Side frame section, center technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, center left | 1 | 03/2019 | 41007413105 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| 01 | Side frame, center right | 1 | 03/2019 | 41007413106 | ENDED | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 4 | 03/2019 | 07148499258 | Shop at ECS Tuning | ||||
| 01 | Side frame, center left | 1 | 41219850811 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 01 | Side frame, center right | 1 | 41219850812 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 02 | Reinforcement tube, roof frame, left | 1 | 41217407057 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 02 | Reinforcement tube, roof frame, right | 1 | 41217407058 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N12 | D=4,8MM | 3 | 07147391046 | Shop at ECS Tuning | |||||
| 03 | Tension band column C, left | 1 | 41217413115 | Shop at ECS Tuning | ||||||
| 03 | Tension band column C, right | 1 | 41217413116 | Shop at ECS Tuning | ||||||
| 04 | C-pillar support, left | 1 | 41007421771 | Shop at ECS Tuning | ||||||
| 04 | C-pillar support, right | 1 | 41007421772 | Shop at ECS Tuning | ||||||
| 05 | C-pillar reinforcement, left | 1 | 12/2018 | 41217330179 | ENDED, NoS | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| 05 | C-pillar reinforcement, right | 1 | 12/2018 | 41217330180 | ENDED, NoS | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Blind rivet N11 | D=4,8MM | 12 | 12/2018 | 07147391057 | Shop at ECS Tuning | ||||
| 05 | C-pillar reinforcement, left | 1 | 41217433519 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 05 | C-pillar reinforcement, right | 1 | 41217433520 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N11 | D=4,8MM | 12 | 07147391057 | Shop at ECS Tuning | |||||
| 06 | Console opener, left | 1 | 41007421769 | Shop at ECS Tuning | ||||||
| 06 | Console opener, right | 1 | 41007421770 | Shop at ECS Tuning | ||||||
| 07 | Extension, wheel housing strut left | 1 | 41007412961 | Shop at ECS Tuning | ||||||
| 07 | Extension, wheel housing strut right | 1 | 41007412962 | Shop at ECS Tuning | ||||||
| 08 | Support, carrier support, left | 1 | 41217421795 | Shop at ECS Tuning | ||||||
| 08 | Support, carrier support, right | 1 | 41217421796 | Shop at ECS Tuning | ||||||
| 09 | Bulkhead plate, A-pillar left | 1 | 41217421799 | Shop at ECS Tuning | ||||||
| 09 | Bulkhead plate, A-pillar right | 1 | 41217421800 | Shop at ECS Tuning | ||||||
| 10 | Crash reinforcement, left | 1 | 41217421793 | Shop at ECS Tuning | ||||||
| 10 | Crash reinforcement, right | 1 | 41217421794 | Shop at ECS Tuning | ||||||
| 11 | Reinforcement plate, rocker panel | 2 | 41217425177 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740LiX Side frame section, center?
- This technical diagram illustrates the Side frame section, center within the Bodywork group for the 7 Series G12 740LiX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Side frame, center left (Part #41007413105).
- Which models use the hardware listed in this Side frame section, center?
- The hardware and components featured in the Side frame section, center are specific to the 7 Series G12 740LiX produced during 2018. These technical specifications ensure that parts like the Side frame, center left (41007413105) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side frame section, center assembly?
- Each item in the Side frame section, center corresponds to the numbered list below the illustration. For the 7 Series G12 740LiX, you can identify the Side frame, center left by locating its position on the schematic, which then links to the official BMW part number 41007413105 for the Bodywork section.
