Partition trunk/Floor parts for BMW 7 Series G12 725Ld (2017)

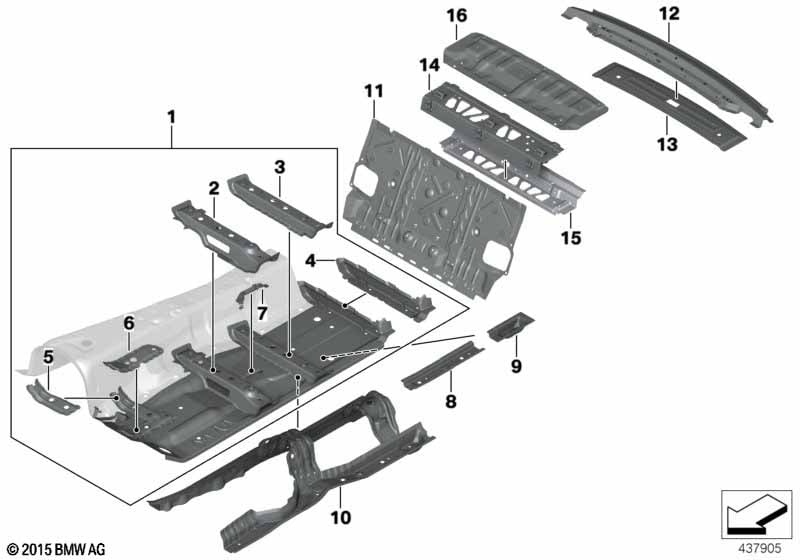

This Partition trunk/Floor parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 725Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor panel left | 1 | 41007401641 | Shop at ECS Tuning | ||||||
| 01 | Floor panel right | 1 | 41007401642 | Shop at ECS Tuning | ||||||
| 02 | Left front seat console | 1 | 41007401587 | Shop at ECS Tuning | ||||||
| 02 | Right front seat console | 1 | 41007401588 | Shop at ECS Tuning | ||||||
| 03 | Left rear seat console | 1 | 41007401589 | Shop at ECS Tuning | ||||||
| 03 | Right rear seat console | 1 | 41007401590 | Shop at ECS Tuning | ||||||
| 04 | Cross brace, heel plate, left | 1 | 05/2017 | 41008493863 | Shop at ECS Tuning | |||||
| 04 | Cross brace, heel plate, right | 1 | 05/2017 | 41008493864 | Shop at ECS Tuning | |||||
| 05 | Reinforcement, tunnel, front left | 1 | 41125A37995 | NoS | Shop at ECS Tuning | |||||
| 05 | Reinforcement, tunnel, front right | 1 | 41125A37996 | NoS | Shop at ECS Tuning | |||||
| 06 | Reinforcement, engine support, top left | 1 | 41117401631 | NoS | Shop at ECS Tuning | |||||
| 06 | Reinforcement, engine support, top right | 1 | 41117401636 | NoS | Shop at ECS Tuning | |||||
| 07 | Bracket for central bass, left | 1 | 41127401629 | NoS | Shop at ECS Tuning | |||||
| 07 | Bracket for central bass, right | 1 | 41127401630 | NoS | Shop at ECS Tuning | |||||
| 08 | Engine support extension | 2 | 12/2021 | 41117401628 | Shop at ECS Tuning | |||||
| 08 | Engine support extension | 2 | 41118844243 | Shop at ECS Tuning | ||||||
| 09 | Top, engine support extension | 2 | 41007461321 | Shop at ECS Tuning | ||||||
| 10 | Bracket for transmission mount | 1 | 41007401594 | Shop at ECS Tuning | ||||||
| 11 | Partition trunk | 1 | 41007413089 | Shop at ECS Tuning | ||||||
| 12 | Rear window frame bottom part | 1 | 41117451422 | Shop at ECS Tuning | ||||||
| 13 | Covering panel rear window frame | 1 | 41117413093 | Shop at ECS Tuning | ||||||
| 14 | Cross member for partition | 1 | 41007413091 | Shop at ECS Tuning | ||||||
| 15 | End plate for partition cross brace | 1 | 41117413092 | NoS | Shop at ECS Tuning | |||||
| 16 | Partition, upper trunk | 1 | 51717334490 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
