Floor panel trunk/wheel housing rear for BMW 7 Series G12 740LiX (2018)

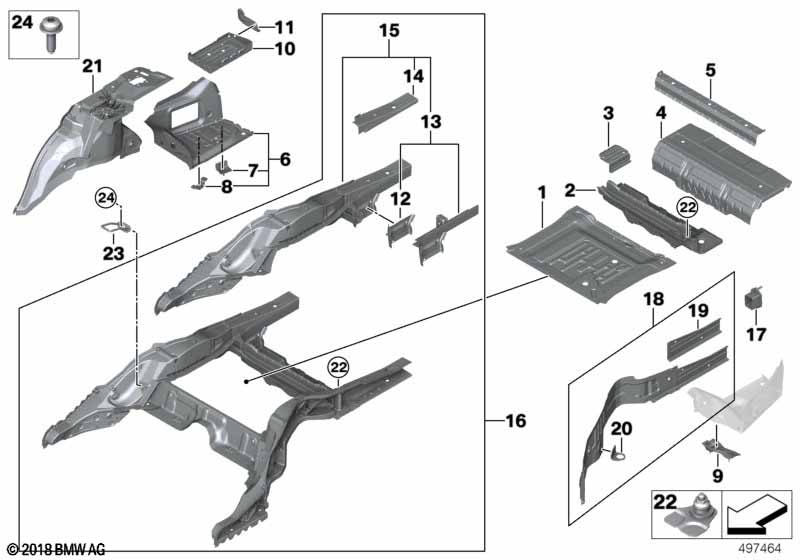

This Floor panel trunk/wheel housing rear technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front trunk floor | 1 | 11/2018 | 41007427805 | ENDED | Shop at ECS Tuning | ||||
| 01 | Front trunk floor | 1 | 41009450008 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Battery bracket | 1 | 61218704689 | Shop at ECS Tuning | ||||||
| -- | Combination Allen bolt | 2 | 61218704702 | Shop at ECS Tuning | ||||||
| 02 | Luggage compartment pan | 1 | 41007413075 | Shop at ECS Tuning | ||||||
| 03 | Reinforcement for trunk well | 1 | 41007427804 | Shop at ECS Tuning | ||||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 04 | Luggage compartment floor, rear | 1 | 41007431643 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 18 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 05 | Cross member, trunk floor rear | 1 | 41007413081 | Shop at ECS Tuning | ||||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 06 | Trunk floor left | 1 | 41007413069 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 14 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 06 | Trunk floor right | 1 | 41007413070 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Mount for SCR container | 2 | 41007436957 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 14 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 07 | Mount for SCR container | 1 | 41007436957 | Shop at ECS Tuning | ||||||
| 08 | Bracket activated Carbon container | M6 | 1 | 41007431655 | Shop at ECS Tuning | |||||
| 09 | Mount for air-supply system | 1 | 41007431656 | Shop at ECS Tuning | ||||||
| 12 | Trunk tub left | 1 | 41007413065 | Shop at ECS Tuning | ||||||
| 12 | luggage compartment liner right | 1 | 41007413066 | Shop at ECS Tuning | ||||||
| 13 | Extension, side member, lower left | 1 | 41007413037 | Shop at ECS Tuning | ||||||
| 13 | Extension, side member, lower right | 1 | 41007413038 | Shop at ECS Tuning | ||||||
| 14 | Extension, side member, upper left | 1 | 41007413043 | Shop at ECS Tuning | ||||||
| 14 | Extension, side member, upper right | 1 | 41007413044 | Shop at ECS Tuning | ||||||
| 15 | Side member, inner left | 1 | 41007413031 | Shop at ECS Tuning | ||||||
| 15 | Side member, inner right | 1 | 41007413032 | Shop at ECS Tuning | ||||||
| 16 | Support structure for cargo area floor | 1 | 41007413072 | Shop at ECS Tuning | ||||||
| 17 | Mount, bumper left | 1 | 12/2020 | 41007413085 | ENDED | Shop at ECS Tuning | ||||
| 17 | Mount, bumper right | 1 | 12/2020 | 41007413086 | ENDED | Shop at ECS Tuning | ||||
| 17 | Mount, bumper left | 1 | 41009630049 | Shop at ECS Tuning | ||||||
| 17 | Mount, bumper right | 1 | 41009630050 | Shop at ECS Tuning | ||||||
| 18 | End plate, side member, left | 1 | 41007413067 | Shop at ECS Tuning | ||||||
| 18 | End plate, side member, right | 1 | 41007413068 | Shop at ECS Tuning | ||||||
| 19 | Extension, side member, side, left | 1 | 41007413063 | Shop at ECS Tuning | ||||||
| 19 | Extension, side member, side, right | 1 | 41007413064 | Shop at ECS Tuning | ||||||
| 20 | Holder, brake hose, left | 1 | 05/2017 | 41007413083 | Shop at ECS Tuning | |||||
| 20 | Holder, brake hose, right | 1 | 05/2017 | 41007413084 | Shop at ECS Tuning | |||||
| 21 | Rear left wheelhouse, inner half | 1 | 41007413087 | Shop at ECS Tuning | ||||||
| 21 | Rear right wheelhouse, inner half | 1 | 41007413088 | Shop at ECS Tuning | ||||||
| 22 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 22 | Ground pin 48V | M8X13 | X | 41009880323 | Shop at ECS Tuning | |||||
| 22 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 23 | Holder Isofix, exterior | 2 | 12/2021 | 41007341583 | ENDED, NoS | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Oval-head machine screw, self-locking | M8X25-10.9-ZNS3 | 2 | 12/2021 | 07147427469 | Shop at ECS Tuning | ||||
| 23 | Holder Isofix, exterior | 2 | 41009631343 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Oval-head machine screw, self-locking | M8X25-10.9-ZNS3 | 2 | 07147427469 | Shop at ECS Tuning | |||||
| 24 | Oval-head machine screw, self-locking | M8X25-10.9-ZNS3 | 2 | 07147427469 | NoS | Shop at ECS Tuning | ||||
