Cavity shielding, side frame for BMW MINI Clubman F54 Cooper (2019)

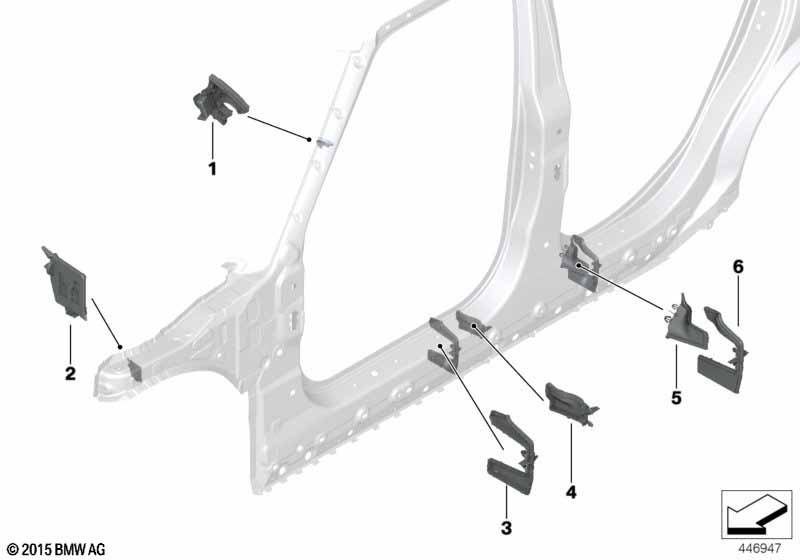

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Molded part column A left | 1 | 41007346173 | Shop at ECS Tuning | ||||||
| 01 | Molded part column A right | 1 | 41007346174 | Shop at ECS Tuning | ||||||
| 02 | Moulded part f wheel housing supp.,front | 1 | 41007320735 | Shop at ECS Tuning | ||||||
| 03 | Molded part f entrance front | 1 | 41007346081 | Shop at ECS Tuning | ||||||
| 04 | Molded part f entrance inside left | 1 | 41007402767 | Shop at ECS Tuning | ||||||
| 04 | Molded part f entrance inside right | 1 | 41007402768 | Shop at ECS Tuning | ||||||
| 05 | Molded part f column B, exterior left | 1 | 41007399419 | Shop at ECS Tuning | ||||||
| 05 | Moulded part f column B, exterior right | 1 | 41007399420 | Shop at ECS Tuning | ||||||
| 06 | Moulded part f column B, interior left | 1 | 41007346089 | Shop at ECS Tuning | ||||||
| 06 | Molded part f column B, interior right | 1 | 41007346090 | Shop at ECS Tuning |
