Roof for BMW MINI Clubman F54 One (2019)

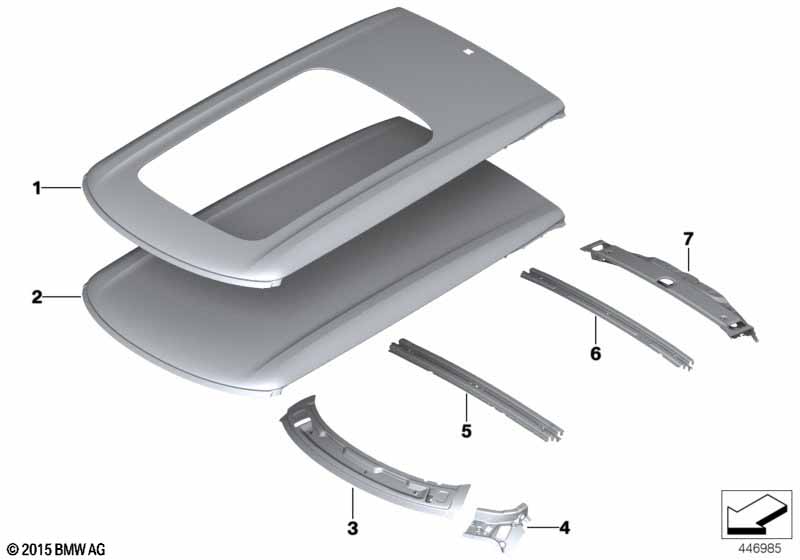

This Roof technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electric panoramic roof Performed using adhesive bonding/ riveting repair method. |
S402A=Yes |
|||||||||
| 01 | Panorama roof | 1 | 41007430891 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 22 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Seam sealer | 300ML | 1 | 83420428349 | ENDED | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 8 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 2 | 83195A59935 | Shop at ECS Tuning | |||||
| Performed using adhesive bonding/ riveting repair method. |
||||||||||
| 02 | Roof | 1 | 41007430862 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 22 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Seam sealer | 300ML | 1 | 83420428349 | ENDED | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 8 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 2 | 83195A59935 | Shop at ECS Tuning | |||||
| 03 | Apron | 1 | 41007430892 | Shop at ECS Tuning | ||||||
| 04 | Connector, windshield cowl, lateral,left | 1 | 41007430889 | Shop at ECS Tuning | ||||||
| 04 | Connector, windshield cowl,lateral,right | 1 | 41007430890 | Shop at ECS Tuning | ||||||
| 05 | Roof bow, front | 1 | 41007430894 | Shop at ECS Tuning | ||||||
| 06 | Rear roof bow | 1 | 41007430895 | Shop at ECS Tuning | ||||||
| 07 | Rear window frame | 1 | 41007430896 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 One Roof?
- This technical diagram illustrates the Roof within the Bodywork group for the MINI Clubman F54 One produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Panorama roof (Part #41007430891).
- Which models use the hardware listed in this Roof?
- The hardware and components featured in the Roof are specific to the MINI Clubman F54 One produced during 2019. These technical specifications ensure that parts like the Panorama roof (41007430891) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof assembly?
- Each item in the Roof corresponds to the numbered list below the illustration. For the MINI Clubman F54 One, you can identify the Panorama roof by locating its position on the schematic, which then links to the official BMW part number 41007430891 for the Bodywork section.
