Front door-hinge/door brake for BMW MINI Clubman F54 One (2019)

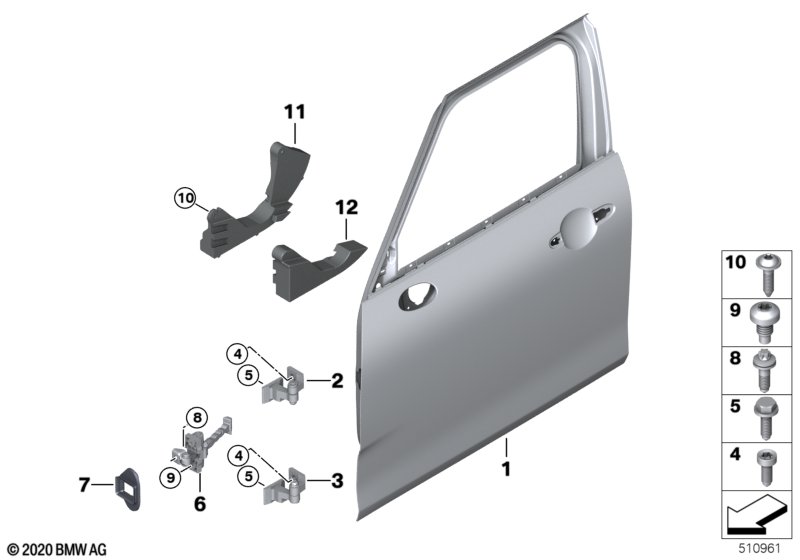

This Front door-hinge/door brake technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door front left | 1 | 41007462791 | Shop at ECS Tuning | ||||||
| 01 | Door front right | 1 | 41007462792 | Shop at ECS Tuning | ||||||
| 02 | Left upper front door hinge | 1 | 41517284533 | +core | Shop at ECS Tuning | |||||
| 02 | Right upper front door hinge | 1 | 41517284534 | +core | Shop at ECS Tuning | |||||
| 03 | Left lower front door hinge | 1 | 41517284535 | +core | Shop at ECS Tuning | |||||
| 03 | Right lower front door hinge | 1 | 41517284536 | +core | Shop at ECS Tuning | |||||
| 04 | Torx-countersunk head screw | ISA M10X28 | 4 | 07147266068 | Shop at ECS Tuning | |||||
| 05 | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 06 | Door brake, front left | 1 | 51217460533 | Shop at ECS Tuning | ||||||
| 06 | Door brake, front right | 1 | 51217460534 | Shop at ECS Tuning | ||||||
| 07 | Door stop seal, front right | 1 | 51217494248 | Shop at ECS Tuning | ||||||
| 08 | Torx-bolt with washer | ASA M8X22 | 1 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Torx-bolt with washer | ISA M6X12 | 2 | 51226976687 | $0.59 | Shop at ECS Tuning | ||||
| 11 | Crash pad for door, inner left | 1 | 51717344125 | Shop at ECS Tuning | ||||||
| 11 | Crash pad for door, inner right | 1 | 51717344126 | Shop at ECS Tuning | ||||||
| 12 | Crash pad for door, outer left | 1 | 51717407813 | Shop at ECS Tuning | ||||||
| 12 | Crash pad for door, outer right | 1 | 51717407814 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
