Radio remote control for BMW 5 Series F10 LCI 530d (2013)

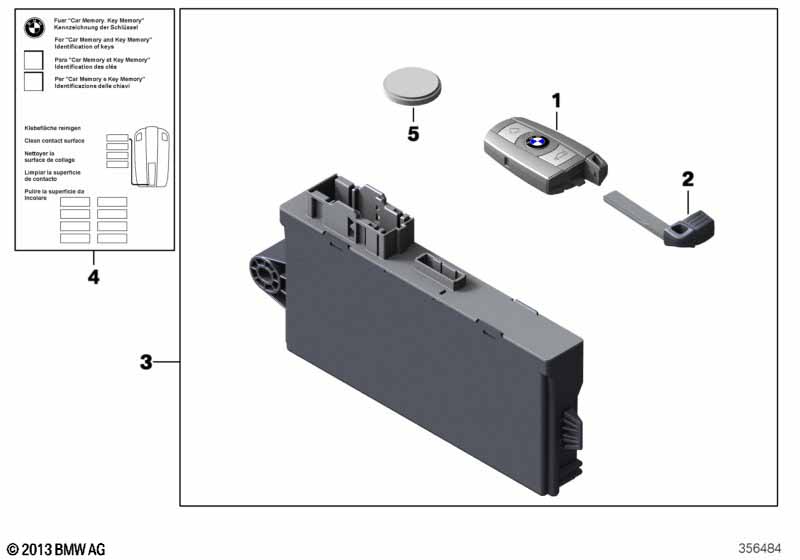

This Radio remote control technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. For vehicles with Modern Line and Luxury Line |
P7S1A=Yes P7S2A=No |
||||||||
| 01 | RF remote control PCA - Modern Line | 868 MHZ | 2 | 03/2015 | 66129284936 | Shop at ECS Tuning | ||||
| 01 | Radio remote control Comfort Access | 868 MHZ | 2 | 66125A57FC9 | Shop at ECS Tuning | |||||
| For vehicles with Radio frequency 315 MHz |
S876A=Yes |
|||||||||
| 01 | Radio remote control PCA | 315 MHZ | 2 | 66128723585 | Shop at ECS Tuning | |||||
| For vehicles with Radio frequency 434 MHz |
S874A=Yes |
|||||||||
| 01 | RF remote control PCA - Modern Line | 434 MHZ | 2 | 03/2015 | 66129284938 | Shop at ECS Tuning | ||||
| 01 | Radio remote control PCA | 434 MHZ | 2 | 66128723586 | Shop at ECS Tuning | |||||
| 02 | Integrated key | DOLOMITI | 2 | 03/2015 | 51217293906 | Shop at ECS Tuning | ||||
| 02 | Integrated key | BLACK | 2 | 51217268293 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 03 | Set of keys with ECU / Modern Line | 868 MHZ | 1 | 51210040590 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Radio frequency 434 MHz |
S322A=No S874A=Yes |
|||||||||
| 03 | Set of keys with ECU / Modern Line | 434 MHZ | 1 | 51210040587 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Radio frequency 315 MHz |
S322A=No S876A=Yes |
|||||||||
| 03 | Set of keys with ECU / Modern Line | 315 MHZ | 1 | 51210040583 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles and Comfort access |
S205A=No S2TBA=No S2TEA=No S322A=No |
|||||||||
| 03 | Set of keys with ECU / Modern Line | 868 MHZ | 1 | 51210040599 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles and Comfort access and Radio frequency 434 MHz |
S205A=No S2TBA=No S2TEA=No S322A=No S874A=Yes |
|||||||||
| 03 | Set of keys with ECU / Modern Line | 434 MHZ | 1 | 51210040596 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles and Comfort access and Radio frequency 315 MHz |
L802A=No S205A=No S2TBA=No S2TEA=No S322A=No S876A=Yes |
|||||||||
| 03 | Set of keys with ECU / Modern Line | 315 MHZ | 1 | 51210040592 | Shop at ECS Tuning | |||||
| 04 | Label "Key Memory" | 1 | 71239163046 | Shop at ECS Tuning | ||||||
| The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
||||||||||
| 05 | Battery | 3,0 V - CR2450 | 1 | 61319217643 | $8.55 | Shop at ECS Tuning | ||||
