Trunk lid, mounting parts for BMW MINI Clubman F54 One (2019)

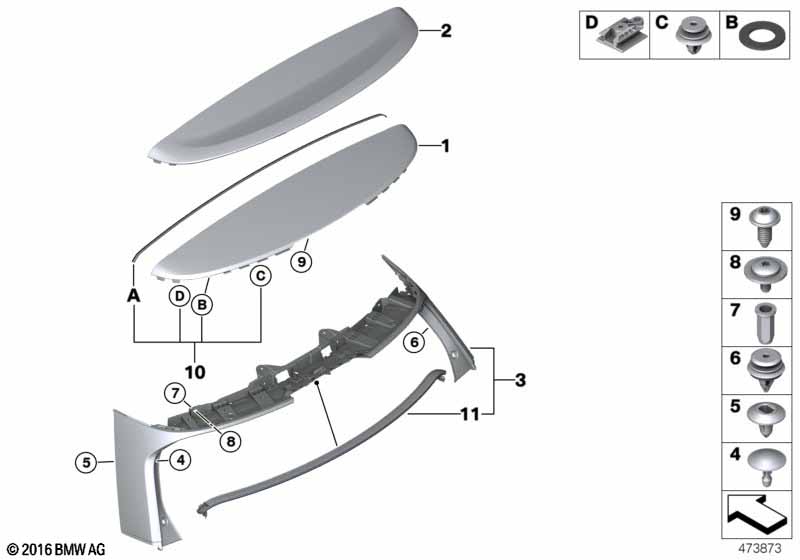

This Trunk lid, mounting parts technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Rear spoiler and JCW Aerodynamics kit Spoiler without attachment parts |
S325A=No S3A1A=No |
|||||||||
| 01 | Primed rear spoiler | 1 | 51127448153 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of retaining elements | 1 | 51627448595 | Shop at ECS Tuning | ||||||
| For vehicles with Rear spoiler or JCW Aerodynamics kit |
S325A=Yes S3A1A=Yes |
|||||||||
| 02 | Primed rear spoiler | JCW | 1 | 51127448154 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of retaining elements | 1 | 51627448595 | Shop at ECS Tuning | ||||||
| 03 | Rear trim panel, center | 1 | 51627368169 | Shop at ECS Tuning | ||||||
| 04 | Clip, upper part | 4 | 51497207958 | $1.97 | Shop at ECS Tuning | |||||
| in body | ||||||||||
| 05 | Clip, bottom part | 4 | 07147222908 | $1.28 | Shop at ECS Tuning | |||||
| 06 | Clip with washer, natur | WEIß | 8 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| 07 | Blind rivet nut, flat headed | M6 | 6 | 51248226003 | $2.13 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M6 ISA | 6 | 07147464960 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw with collar | 4 | 07147187828 | $0.38 | Shop at ECS Tuning | |||||
| 10 | Set of retaining elements | 1 | 51627448595 | Shop at ECS Tuning | ||||||
| 11 | Seal, Splitdoor | 1 | 51337352251 | Shop at ECS Tuning | ||||||
