Body skeleton for BMW MINI Cabrio F57 LCI JCW (2024)

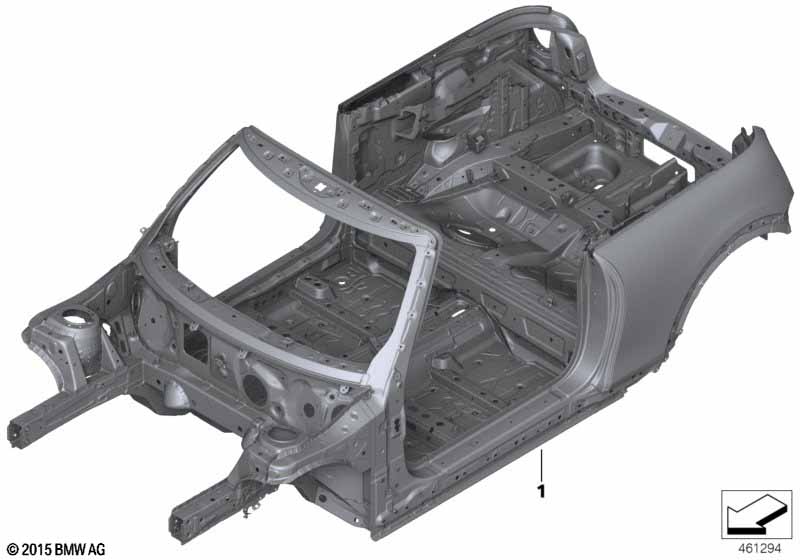

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body skeleton without chassis number | 1 | 41007430342 | ENDED, NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| The following information is required when ordering: - Vehicle identification number |
||||||||||
| 01 | Body skeleton with chassis number | 1 | 41002413626 | ENDED, NoS | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 LCI JCW Body skeleton?
- This technical diagram illustrates the Body skeleton within the Bodywork group for the MINI Cabrio F57 LCI JCW produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Body skeleton without chassis number (Part #41007430342).
- Which models use the hardware listed in this Body skeleton?
- The hardware and components featured in the Body skeleton are specific to the MINI Cabrio F57 LCI JCW produced during 2024. These technical specifications ensure that parts like the Body skeleton without chassis number (41007430342) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body skeleton assembly?
- Each item in the Body skeleton corresponds to the numbered list below the illustration. For the MINI Cabrio F57 LCI JCW, you can identify the Body skeleton without chassis number by locating its position on the schematic, which then links to the official BMW part number 41007430342 for the Bodywork section.
