Body-side frame for BMW MINI Cabrio F57 Cooper (2018)

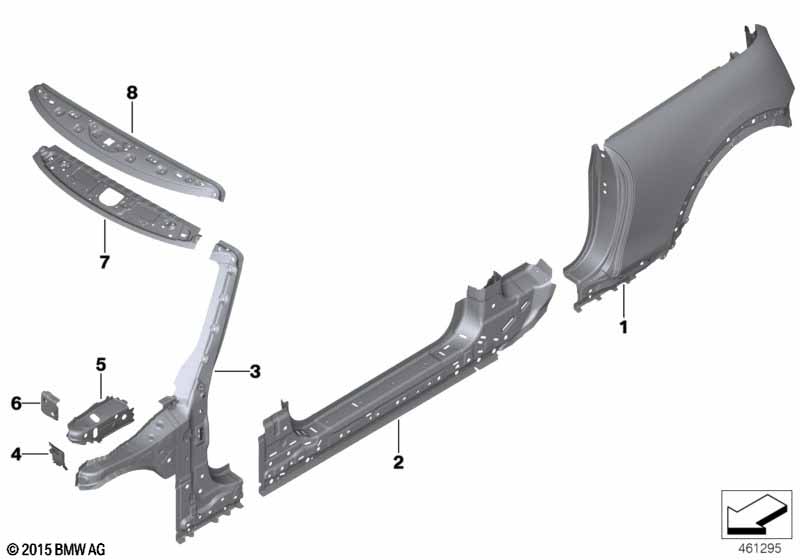

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 02/2024 | 41007430331 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 12 | 02/2024 | 83190301421 | $0.31 | Shop at ECS Tuning | ||||
| -- | Screw | SF PLUS M5X15 | 2 | 02/2024 | 83190301639 | $0.31 | Shop at ECS Tuning | |||
| -- | Cavity protection wax remover | 500ML | 1 | 02/2024 | 83120390086 | Shop at ECS Tuning | ||||
| -- | Seam sealer | 300ML | 1 | 02/2024 | 83420428349 | ENDED | Shop at ECS Tuning | |||
| -- | Cleaner R1 | 100ML | 1 | 02/2024 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Punch rivet N4 | 32 | 02/2024 | 83192457307 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 02/2024 | 83195A59935 | Shop at ECS Tuning | ||||
| 01 | Left rear side panel | 1 | 41305A7E625 | Shop at ECS Tuning | ||||||
| 01 | Right rear side panel | 1 | 02/2024 | 41007430332 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 12 | 02/2024 | 83190301421 | $0.31 | Shop at ECS Tuning | ||||
| -- | Screw | SF PLUS M5X15 | 2 | 02/2024 | 83190301639 | $0.31 | Shop at ECS Tuning | |||
| -- | Cavity protection wax remover | 500ML | 1 | 02/2024 | 83120390086 | Shop at ECS Tuning | ||||
| -- | Seam sealer | 300ML | 1 | 02/2024 | 83420428349 | ENDED | Shop at ECS Tuning | |||
| -- | Cleaner R1 | 100ML | 1 | 02/2024 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Punch rivet N4 | 32 | 02/2024 | 83192457307 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 02/2024 | 83195A59935 | Shop at ECS Tuning | ||||
| 01 | Right rear side panel | 1 | 41305A7E626 | Shop at ECS Tuning | ||||||
| 02 | Exterior left entrance | 1 | 41007430315 | Shop at ECS Tuning | ||||||
| 02 | Exterior right entrance | 1 | 41007430316 | Shop at ECS Tuning | ||||||
| 03 | Left exterior column A | 1 | 41007430335 | Shop at ECS Tuning | ||||||
| 03 | Column A exterior right | 1 | 41007430336 | Shop at ECS Tuning | ||||||
| 04 | Moulded part f wheel housing supp.,front | 1 | 41007292801 | Shop at ECS Tuning | ||||||
| 05 | Supporting strut,whl house, interior lft | 1 | 41007387005 | Shop at ECS Tuning | ||||||
| 05 | Supporting strut,whl house,interior rght | 1 | 41007387006 | Shop at ECS Tuning | ||||||
| 06 | Bulkhead support bracket, left | 1 | 41007387009 | Shop at ECS Tuning | ||||||
| 06 | Bulkhead support bracket, right | 1 | 41007387010 | Shop at ECS Tuning | ||||||
| 07 | Upper apron | 1 | 41007430339 | Shop at ECS Tuning | ||||||
| 08 | Cover, windshield | 1 | 41007417929 | Shop at ECS Tuning | ||||||
